Ground Balancing and Avoiding False Signals with the Automatic Tuning System (ATS)

In the high-stakes realm of recreational prospecting, archaeological fieldwork, and deep-vein cache hunting, few engineering challenges are as persistent as ground mineralization. Every experienced detectorist has lived through the same frustrating sequence: sweeping a promising stretch of wilderness only to be bombarded by erratic audio chirps, bouncing digital ID readouts, and false target indications that lead to digging empty holes. These phantom responses—widely known in the detecting community as “ghost signals” or ground chatter—are not caused by faulty electronics or user error; they are the direct physical consequence of electromagnetic coupling between the detector’s search coil and the conductive, magnetic soil matrix beneath it, Automatic Tuning System (ATS)

Geological data shows that iron oxides (magnetite and hematite) make up an average of 5% to 6% of the Earth’s continental crust by weight, with placer deposits and volcanic gold belts exhibiting localized magnetic mineral concentrations exceeding 20% to 40%. When sweeping over these ground profiles, a detector’s receive coil captures a soil reflection signal that can be up to 1,000 times stronger than the microscopic eddy currents produced by a deeply buried gold nugget or an ancient coin. Without real-time, precise soil neutralization, deep targets remain completely masked.

To overcome this limitation, high-end detection systems developed by MWF Metal Detectors integrate a proprietary hardware and algorithmic framework known as the Automatic Tuning System (ATS) across their entire product fleet. In this deep-dive guide, we examine the physics of ground balancing, analyze why legacy manual balancing methods fail across dynamic terrain, explain how the ATS architecture dynamically eliminates ground chatter, and evaluate how this feature empowers MWF systems to deliver unmatched target depth and stability.

1. What Is Ground Mineralization and Why Does It Cause False Signals?

To understand the necessity of ground balancing, one must evaluate the electromagnetic properties of the Earth itself. The ground beneath our feet is far from a neutral, inert void; it is a complex, electrically active matrix containing magnetic susceptibility, resistive moisture, and dissolved mineral salts.

The Two Types of Ground Mineralization

• 🧲 Magnetic Mineralization (Ferruginous Soils): Caused primarily by iron-bearing mineral compounds such as iron oxides (magnetite Fe₃O₄, hematite Fe₂O₃, and maghemite). These minerals possess high magnetic permeability . When the detector’s transmit coil pulses or alternates a magnetic field, these minerals align with the field, distorting the lines of flux and inducing a massive, in-phase reflective signal directly into the receive winding.
• 🧂 Conductive Mineralization (Saline & Alkali Ground): Caused by dissolved ionic salts in damp clay, marine beaches, and desert salt flats. When salt ions are dissolved in water, they create a conductive continuum. Under an alternating electromagnetic field, bulk eddy currents circulate through the moisture pockets of the ground itself, mimicking the low-to-mid range phase signature of non-ferrous metals like gold, aluminum, and small bronze relics.

The Physics of Ghost Signals and Target Masking

When an unground-balanced detector sweeps over uneven soil, three disruptive phenomena occur:

1. Soil Profile Variance: Walking just three steps can shift soil composition from low magnetic sand to an iron-dense clay pocket. The receiver’s pre-amplifier sees this transition as a target transition, firing a false tone.
2. Coil-to-Ground Capacitance Variations: As the search coil tilts or bobs a fraction of an inch closer to or farther from the ground, the intensity of the received ground signal spikes or drops abruptly. The detector interprets this amplitude variation as a discrete buried object.
3. Signal Masking (The Blinding Effect): When the magnitude of the ground return signal saturates the receiver stage of the detector, the analog-to-digital converter (ADC) loses dynamic range. A genuine coin or sub-gram gold nugget sitting 20 centimeters below the surface generates an electromagnetic response that is buried inside the ground noise floor, leaving the user oblivious to the treasure beneath.

2. Ground Balance Explained: How Detectors Cancel Soil Reflections

Ground balancing is the electrical process of setting the detector’s receiver circuitry to ignore the background electromagnetic signature of the soil while maintaining maximum amplification for isolated metallic anomalies.

Modern metal detectors process signals along two orthogonal axes on a complex vector plane: the Resistive (Conductive) axis (X) and the Reactive (Inductive/Magnetic) axis (R). When a signal is picked up by the coil, the onboard electronics measure the Phase Angle  between the transmitted wave and the received wave

Phase Demodulation and Ground Nulling

Dry, magnetic soil composed of pure iron oxides produces an almost entirely reactive phase angle . Highly conductive metals like pure copper or thick silver produce large inductive phase shifts nearing, while thin gold nuggets and foil register in the mid-range.

In a properly calibrated ground balance circuit, the detector sets an internal demodulation phase line perpendicular to the soil’s dominant phase angle. By rotating the phase detection angle, any signal that aligns with the ground phase vector is mathematically or electronically multiplied by zero, neutralizing it from the audio output. Only targets whose phase vectors deviate significantly from the ground vector pass through the audio threshold gate.

3. The Evolution of Ground Balancing: Manual vs. Auto-Tracking vs. ATS

Understanding why legacy ground-balancing techniques fail under modern, highly variable field conditions clarifies why dedicated automated hardware solutions are necessary.

4. Inside ATS (Automatic Tuning System): The MWF Engineering Advantage

A frequent flaw in standard automatic ground tracking systems is the “target balance out” error. When an operator sweeps over a very deep, large cache or a faint gold nugget repeatedly to verify the signal, standard digital tracking algorithms notice a persistent phase disruption and mistakenly assume that the soil composition has changed. The algorithm adjusts the ground phase toward the target’s phase, effectively canceling the audio tone and masking the discovery.

To eliminate this vulnerability, MWF Metal Detectors incorporates the Automatic Tuning System (ATS) as a universal hardware standard across all its devices. The ATS architecture operates on a dual-stage analytical workflow:

1. Dual-Channel Environmental Impedance Sampling

Unlike basic detectors that process target discrimination and ground tracking within a single shared calculation loop, the ATS platform operates a dedicated, isolated background monitoring channel. This channel constantly assesses the baseline electrical conductivity, capacitive coupling, and magnetic susceptibility of the earth at hundreds of cycles per second, completely independent of the target detection channel.

2. Dynamic Soil Neutralization Filters

When the search head passes from non-mineralized river loam to a band of dense volcanic magnetite, ATS recalculates the ground vector in real time. Rather than relying on sluggish software averaging, ATS applies instantaneous high-speed mathematical filters that adjust receiver balance before the operator completes their forward swing.

3. “Smart Lock” Non-Ferrous Protection

ATS incorporates an advanced target boundary lock. When a localized electromagnetic anomaly displays the characteristics of a discrete metallic object (sharp rise time, defined signal boundary, localized eddy current density), the system automatically locks the ground balance parameters, preventing the detector from averaging out or tracking out the target. You can sweep over a deep, whisper-quiet target dozens of times without degrading signal clarity.

ATS (Automatic Tuning System): The MWF Engineering Advantage

5. How ATS Elevates the Full Lineup of MWF Metal Detectors

Because the Automatic Tuning System (ATS) is embedded across all MWF products, it provides dedicated performance enhancements regardless of whether a prospector is utilizing close-range high-frequency coils, deep-seeking electromagnetic sensors, or broad-spectrum long-range locator (LRL) arrays.

ATS in Multi-Frequency & Graphic Imaging Systems (e.g., MWF FALKE)

In high-end hybrid platforms such as the MWF FALKE, ATS operates as the foundational signal conditioning stage. Because the FALKE processes multi-frequency returns and renders graphic real-time identification data, any uncompensated soil noise directly corrupts the target ID screen. ATS cleanses the incoming raw signal before it reaches the digital signal processor (DSP), delivering:

• 🚀 Rock-Solid Target IDs (VDI Stability): Eliminates jumping numbers caused by hot rocks or wet sand pockets.
• 🚀 True Iron Isolation: Allows the user to reject rusty nails, barbed wire, and iron trash without accidentally silencing sub-gram raw gold or deep ancient relics.
• 🚀 Full-Depth Utilization: Reclaims up to 30% to 50% more depth in heavily mineralized basalt terrain compared to fixed-ground machines.

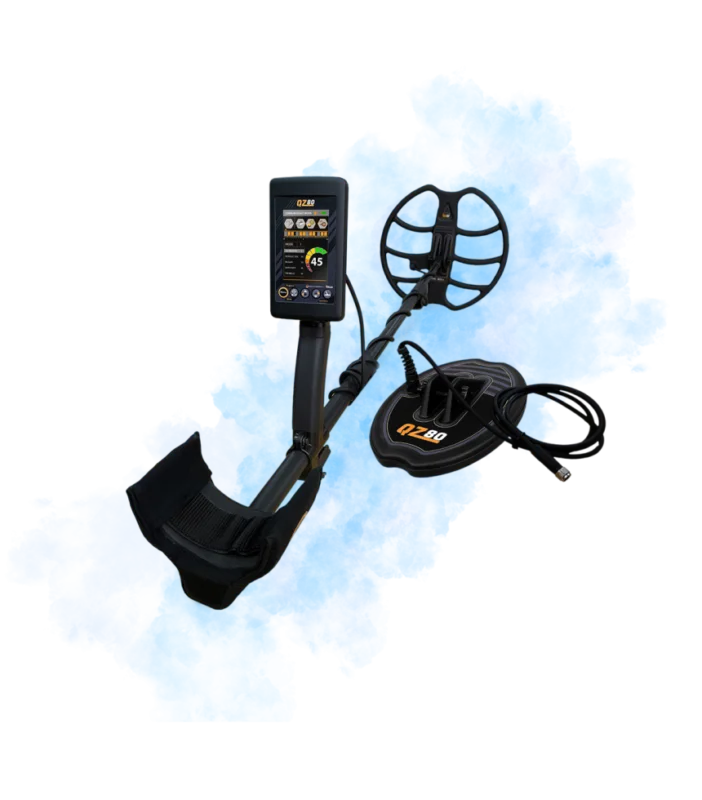

ATS in Micro-Target Prospecting Systems (e.g., MWF QZ 80)

Small gold flakes and sub-gram nuggets generate minuscule eddy currents that are fragile and easily overwhelmed. In specialized prospecting machines like the MWF QZ 80, ATS continuously compensates for black sand (magnetite) common in gold-bearing dry placers and creek banks:

• 🚀 Silent Threshold Operation: Keeps the background audio threshold silky smooth, allowing prospectors to detect the faint, whispered audio variations that characterize deep gold.
• 🚀 Zero Sensitivity Degradation: Enables running sensitivity at maximum gain without triggering false ground feedback.

ATS in Long-Range Locators (e.g., MWF SPARK & SPARK Gold Nugget)

Long-range sensing systems such as the MWF SPARK Series use precise electrostatic and electromagnetic frequency resonance to detect distant ionic and magnetic fields. In these systems, ground mineralization poses a different threat: atmospheric and surface static noise that can deflect directional antennas.

ATS acts as an environmental electrostatic stabilizer, neutralizing the static influence of high-mineral surface crusts. This guarantees that the directional guidance frequencies remain focused on genuine buried caches and native gold veins up to hundreds of meters away, rather than drifting toward surface mineral hot-spots.

6. Technical Comparison: Standard Systems vs. MWF ATS Architecture

7. Practical Field Protocols: Maximizing ATS Performance

While the Automatic Tuning System executes complex mathematical balance adjustments automatically, following proper field methodologies ensures your MWF device delivers absolute peak performance:

1. 🎯 Maintain Consistent Coil Sweep Parallelism: Even with advanced ATS processing, avoid swinging the search coil in a pendulum arc (lifting the coil at the ends of each swing). Keeping the coil flat and parallel to the ground maximizes electromagnetic coupling and gives ATS the cleanest baseline data.
2. 🎯 Let ATS Sample the Ambient Matrix: When powering on your MWF device or entering an entirely new geological formation (e.g., crossing from a grassy meadow into a rocky, mineral-dense dry wash), perform two or three smooth sweeps over a clear patch of earth to allow the ATS coprocessor to establish initial ground parameters.
3. 🎯 Cross-Sweep Questionable Targets: If you encounter a faint signal, perform a 90-degree cross-sweep. Thanks to ATS’s anti-tracking protection, a genuine metallic target will maintain a crisp, repeatable phase response from both directions, whereas an isolated hot-rock pocket will break apart or dissipate.
4. 🎯 Adjust Sensitivity Proportionally in Extreme Salt: When hunting saturated saltwater coastlines where conductivity approaches industrial electrolyte levels, pair ATS with modest sensitivity reductions to optimize signal-to-noise ratio.

8. Frequently Asked Questions (FAQ)

What exactly is the Automatic Tuning System (ATS)?

ATS is a proprietary hardware and software technology engineered by MWF that continuously monitors and compensates for ground mineralization, soil conductivity, and environmental electrostatic interference in real time, completely eliminating the need for manual ground balancing.

Does ATS reduce the maximum detection depth of my metal detector?

No. In fact, it achieves the exact opposite. By continuously driving soil reflections to absolute zero, ATS clears the background noise floor, allowing the detector’s receiver stage to amplify faint signals from deep targets that would otherwise be masked by mineral chatter.

Can ATS eliminate signals from “hot rocks”?

Yes. Hot rocks (stones containing higher or different magnetic mineralization than the surrounding soil) produce severe phase distortions in ordinary detectors. ATS detects these localized mineral anomalies and instantly adjusts phase rejection, neutralizing their false audio signatures.

Why do all MWF detectors include the ATS feature?

MWF engineers their detection systems for mission-critical exploration, professional prospecting, and treasure recovery in the world’s harshest environments—from the iron-rich deserts of the Middle East and Africa to mineralized Australian goldfields. Incorporating ATS across the entire MWF lineup guarantees that every user, regardless of model, experiences uncompromising target stability without fighting false signals.

Ground mineralization has historically been the great equalizer in treasure hunting, turning state-of-the-art detectors into erratic noise-makers. By engineering the Automatic Tuning System (ATS) into every machine, MWF Metal Detectors has effectively solved this fundamental challenge. Whether you are hunting deep gold caches, ancient coinage, or sub-gram native nuggets, ATS guarantees that every tone you hear in your headphones represents real buried metal—giving you the clarity, confidence, and depth needed to make history beneath the surface.
