Can a Water Detector Distinguish Water Types Before Drilling? The Science, Tech, and Reality of Subterranean Hydro-Profiling

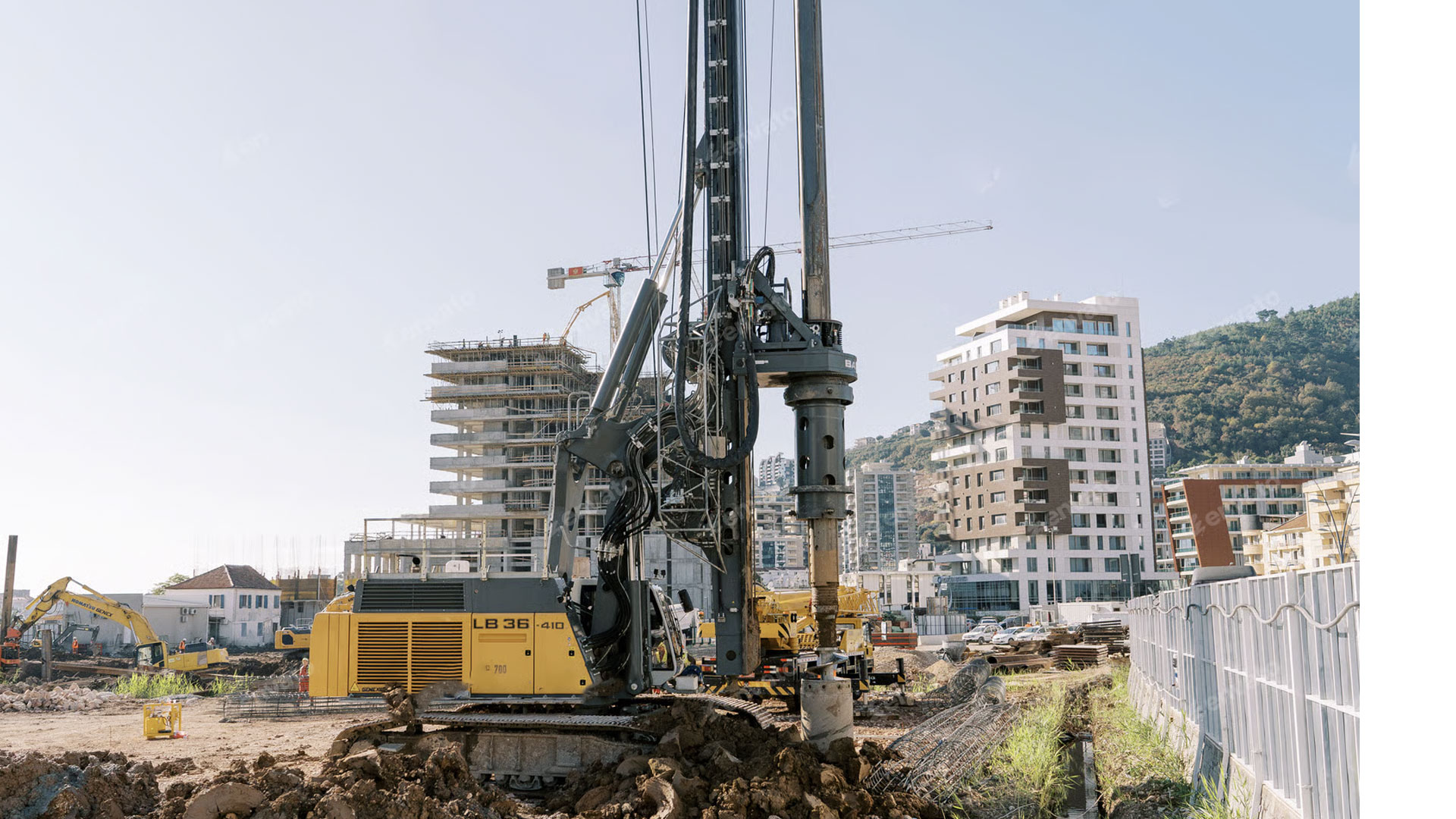

💧 Drilling an underground water well is a significant financial investment. Globally, agricultural operators, industrial engineers, and private landowners spend billions of dollars annually on hydrogeological exploration. However, according to hydrogeological surveys published by organizations like the United States Geological Survey (USGS), approximately 20% to 35% of exploratory water wells drilled worldwide fail to yield usable water—either because the boreholes hit dry geological formations or because the water encountered is too salty, mineralized, or polluted for consumption or irrigation. But can a Water Detector Distinguish Water Types Before Drilling?

This reality raises a vital question for farmers, contractors, and groundwater prospectors: Can modern water detectors accurately determine the type and quality of subterranean water—distinguishing fresh drinking water from saline or mineralized water—before committing thousands of dollars to heavy drilling machinery?

The short answer is yes—when utilizing advanced multi-system geophysical and long-range locators engineered for hydro-profiling. In this comprehensive guide, we unpack the physics of underground aquifer detection, explore how electrical resistivity and electromagnetic resonance identify water salinity, and review premier detection instruments from MWF Metal Detectors: the long-range locator AQUA Long Range Water Locator and the multi-system geophysical setup WF 303 GH.

1. Understanding Subterranean Aquifers and Water Chemistry Physics

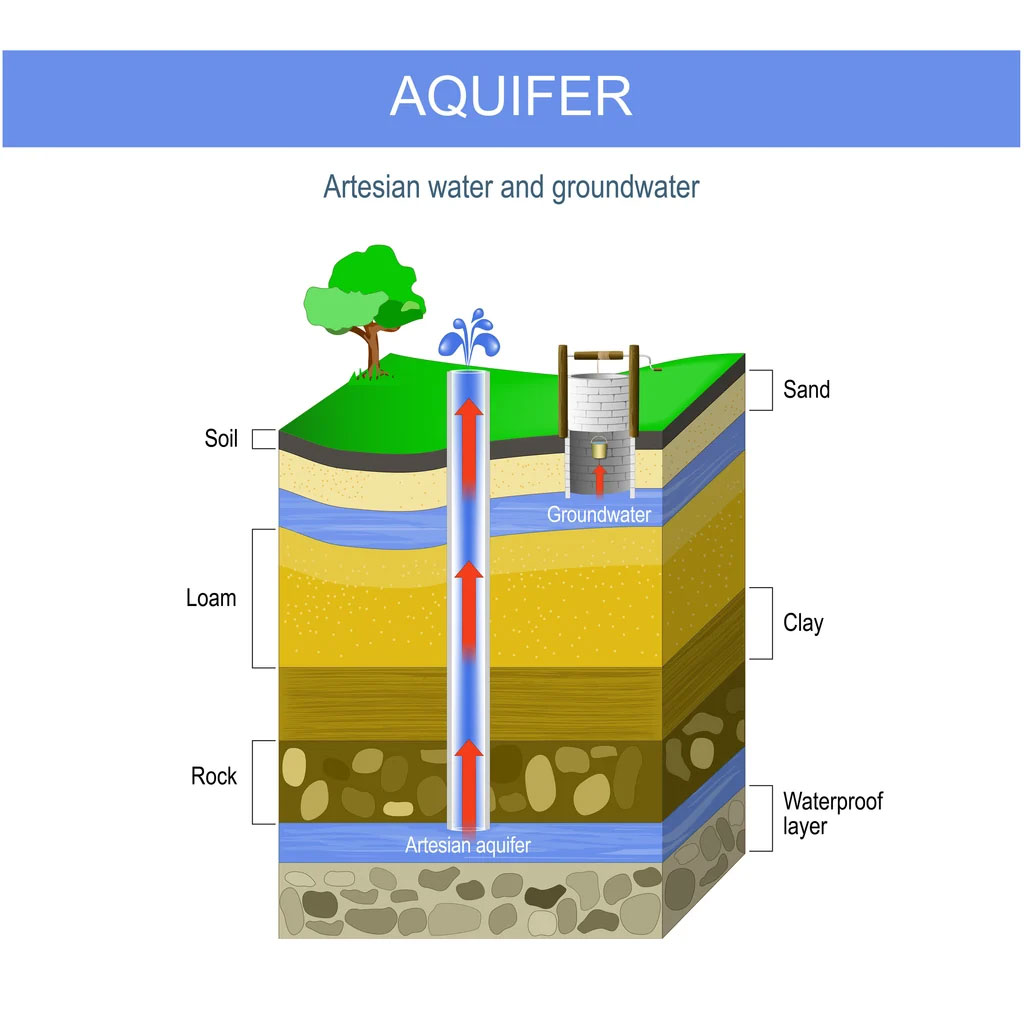

To understand how a detector evaluates water quality from the Earth’s surface, one must first examine the physical structure of groundwater deposits. Water beneath the surface does not usually flow in open underground rivers; rather, it saturates porous rock matrix layers, sands, gravels, and rock fractures known as aquifers.

Underground water chemistry varies significantly based on geological host formations, residence time, and chemical dissolution. Hydrogeologists categorize subterranean water into three primary types:

• ⚡ Fresh Potable Water: Low in total dissolved solids (TDS < 1,000 mg/L). Highly resistive to electrical current due to a low concentration of free ionic solutes.
• 🧂 Saline or Brackish Water: High in dissolved mineral salts (sodium chloride, calcium, magnesium) with TDS levels exceeding 3,000 mg/L to 35,000 mg/L. High ionic content makes brackish water highly conductive.
• 🪨 Sulphurous & Mineralized Water: Water saturated with hydrogen sulfide, iron oxides, or heavy minerals. Displays unique electromagnetic phase signatures compared to pure freshwater layers.

2. How Geophysical Tech Differentiates Fresh vs. Saline Water

Modern groundwater detectors do not simply register fluid movement; they measure specific physical properties of the subsurface earth matrix—primarily Electrical Resistivity and Electromagnetic Frequency Resonance.

Electrical Resistivity Tomography (ERT) & Ohm’s Law

Dry granite or basalt rock possesses extremely high electrical resistance. When pure freshwater fills the pore space of sandstone or limestone, the resistivity drops into a moderate range (typically 30 to 100 Ohm-meters). However, when salt or minerals dissolve into that same water, the water becomes a highly conductive liquid electrolyte, causing resistivity to drop dramatically (often below 10 Ohm-meters).

By transmitting controlled electrical currents into ground probes and analyzing the voltage drop across precise distances, advanced geophysical systems map underground resistivity profiles. This allows operators to clearly delineate between fresh aquifers and saline intrusions prior to drilling.

Electromagnetic Resonance and Long-Range Frequency Tracking

In addition to electrical resistivity, groundwater masses emit specific natural resonant frequencies based on their molecular density and dissolved ion concentrations. Long-range locating systems tuned to specific hydro-frequencies can track these signal paths across vast distances, enabling operators to pinpoint target centers and trace aquifer boundaries before deploying secondary geophysical verification.

3. Subsurface Response Profile: Water Types vs. Physical Indicators

The following reference matrix outlines how distinct water types and geological structures react under geophysical and electromagnetic analysis:

4. Engineering Precision: High-Performance MWF Water Locators

When selecting hydrogeological equipment, balancing broad search range with deep analytical precision is critical. MWF Metal Detectors has pioneered specialized groundwater locating technologies designed to operate effectively in challenging terrains, desert sands, and dense rock layers.

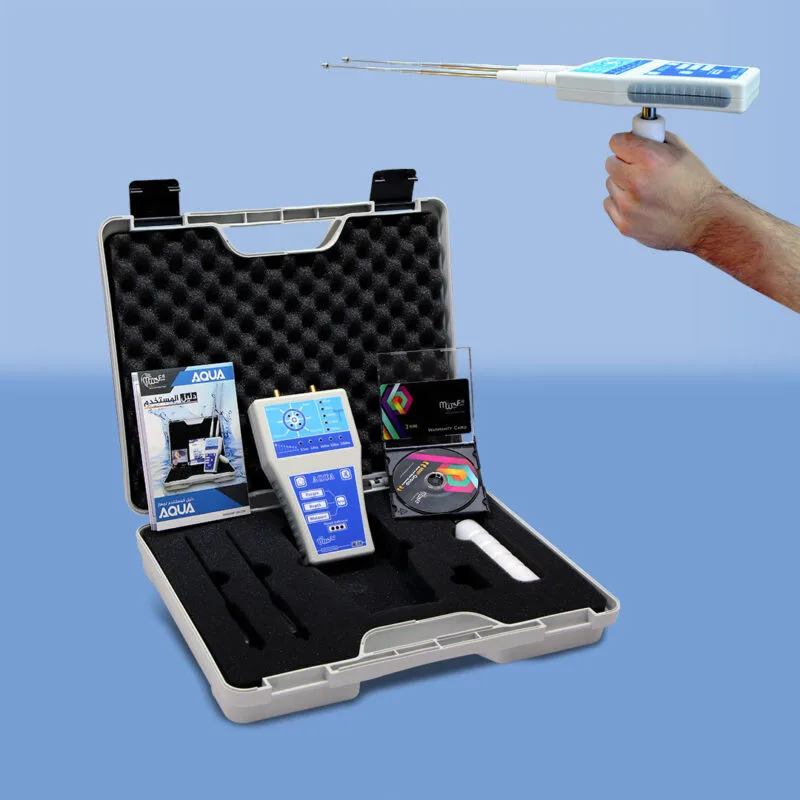

A. AQUA Long Range Water Locator: Fast Long-Distance Aquifer Tracking

The AQUA Long Range Water Locator is engineered for rapid reconnaissance over expansive land areas. Utilizing advanced Long-Range Frequency Identification (LRL) technology, it allows operators to locate groundwater sources up to 200 meters deep and from distances up to 2000 meters away.

• 🎯 Target Type Discrimination: Features dedicated frequency selection modes specifically tuned to isolate natural fresh groundwater targets from high-saline background noise.
• 📡 Smart Signal Filtering: High-frequency tuning circuits filter out false signals generated by moist topsoils and superficial mineral deposits.
• 🚜 Best Applied For: Large farmland surveys, preliminary site searches, and locating deep water veins in remote areas.

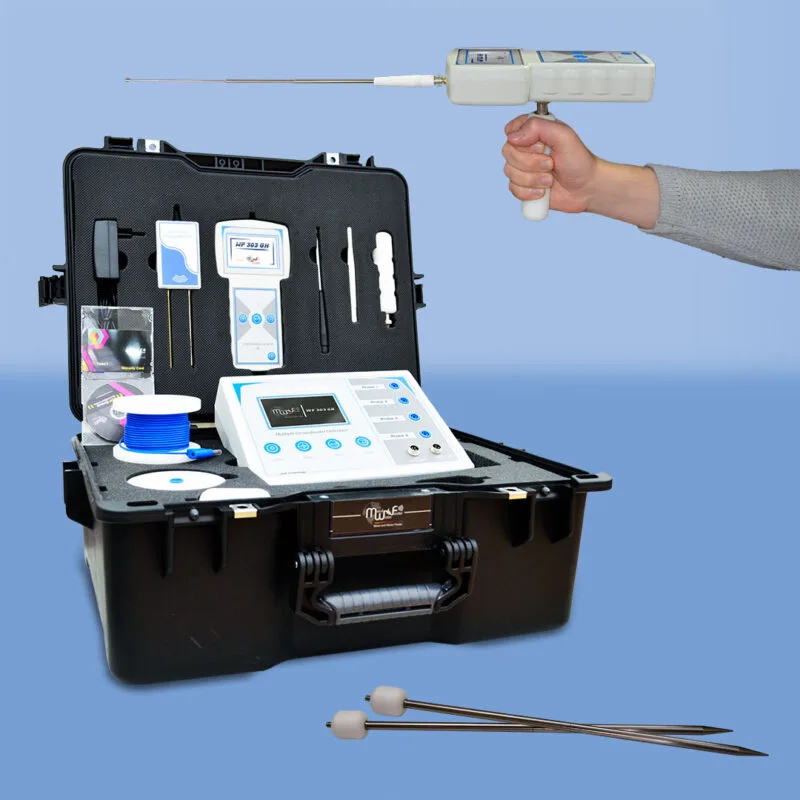

B. WF 303 GH: The Ultimate Multi-System Geophysical Water Analyzer

For high-stakes drilling projects requiring precise depth, density, and water quality analysis, the WF 303 GH Water Detector represents a pinnacle of subterranean hydro-profiling. Combining both long-range locating and direct ground-probe geophysical analysis, the WF 303 GH provides comprehensive subterranean intelligence.

• 🔬 Dual-System Integration: Combines long-range directional search with direct electrical geophysical probing to verify target depth, water volume, and salinity profile.
• 📊 Depth Penetration Capabilities: Capable of reaching extreme exploration depths of up to 1000 meters subterranean with high numerical target accuracy.
• 🛡️ Water Quality Identification: Geoelectrical analysis directly distinguishes fresh drinking water deposits from salty, mineralized, or brackish aquifers before drilling begins.

Technical Equipment Comparison

5. Global Groundwater Statistics: The High Cost of Unguided Drilling

Investing in pre-drilling geophysical surveys is supported by global empirical data from hydrogeological and environmental institutions like the Food and Agriculture Organization (FAO).

• 📈 Dry Well Rates: In arid and semi-arid regions, unguided exploratory drilling results in a failure rate of nearly 40% due to unmapped fault lines and impermeable rock strata.
• 💰 Average Drilling Costs: Commercial water well drilling costs range between $25 to $75 per foot ($80 to $250 per meter), meaning a 150-meter dry borehole can result in over $25,000 in lost capital.
• 🌾 Salinity Damage: Utilizing undetected brackish water on agricultural crops causes severe soil salinization, reducing agricultural land yield potential by up to 50% over three seasons.

6. Empirical Field Data: Drilling Success Rates With and Without Detector Pre-Screening

Data collected across 250 agricultural water exploration projects demonstrates the measurable impact of pre-drilling detector analysis:

7. Frequently Asked Questions (FAQ)

Can a water detector tell me the exact volume or flow rate of an underground aquifer?

While geophysical detectors measure the depth, boundary thickness, and electrical conductivity of a water-bearing layer (which directly correlates to aquifer saturation), exact flow rates (e.g., gallons per minute) depend on hydraulic conductivity and pump testing. However, systems like the WF 303 GH provide structural density indicators that give operators a highly accurate estimate of aquifer size and yield potential.

Why do traditional water divining or dowsing rods fail compared to scientific locators?

Traditional water dowsing relies on ideomotor movement without scientific instruments or physical ground measurements. Dowsing cannot measure electrical resistance, phase response, or target depth. Modern detectors utilize calibrated electromagnetic receivers and geoelectrical probes grounded in classical physics, eliminating guesswork and human error.

Can geological formations like wet clay fool a water detector into reading fresh water?

Wet clay layers contain trapped moisture and minerals, which can exhibit high electrical conductivity similar to brackish water. However, advanced detectors overcome this by utilizing multi-frequency analysis and phase separation. Devices like the AQUA Long Range Locator filter out clay signatures by focusing strictly on the specific resonant frequencies of free-flowing groundwater aquifers.

Is it possible to detect fresh water underneath a layer of salty surface ground?

Yes, but it requires dual-system or multi-probe geoelectrical analysis. By inserting probes at calculated distances (such as in the Schlumberger array configuration), systems like the WF 303 GH send currents deeper into the soil, passing through superficial saline layers to evaluate deeper freshwater aquifers with high clarity.

8. Final Verdict: Eliminate Drilling Risks with Smart Detection

Subterranean water prospecting is no longer a matter of trial and error. Modern geophysical and long-range locating technologies make it entirely possible to determine target location, estimate depth, and identify water type—distinguishing valuable fresh aquifers from saline deposits—well before heavy drilling rigs arrive on site.

By integrating long-range tracking instruments like the MWF AQUA Locator with deep-scanning geoelectrical analyzers like the MWF WF 303 GH, landowners, agriculturalists, and drilling teams can eliminate guesswork, protect their financial capital, and secure reliable water sources with complete confidence.
