Groundwater Detection and Extraction Depth: What You Must Know
Groundwater Detection and Extraction Depths: The Ultimate Guide to the WF-101-III
Groundwater is a vital, hidden pillar of human civilization. Visible surface water in rivers and lakes captures our daily attention. However, these sources represent only a tiny fraction of Earth’s liquid freshwater. Vast networks of subterranean reservoirs, aquifers, and high-pressure water veins lie beneath our feet. These resources sustain ecosystems, fuel massive agricultural complexes, and provide clean drinking water to billions of people worldwide so that ew shuold to know groundwater detection depth groundwater detection depth.
Climate change accelerates rapidly today. Weather patterns fluctuate violently, and surface water resources face severe depletion. Consequently, the search for underground water has intensified. Finding deep resources is no longer a matter of guesswork. It requires a rigorous understanding of hydrogeology, geophysics, and extraction engineering. Most importantly, it demands cutting-edge detection technology.
For exploration teams and well-drilling contractors, precision matters. Using an advanced long-range locator like the WF-101-III Groundwater Locator separates success from financial failure. This device prevents companies from drilling expensive dry holes. This comprehensive guide explores the deep-earth science behind groundwater detection depth. We will analyze global hydrological realities, break down the mechanical stages of well extraction, and examine the WF-101-III locator system in detail.
The Global Groundwater Landscape: Crucial Realities and Statistics
Precision detection technology is critical because humanity depends heavily on subsurface resources. Finding water presents steep challenges. The distribution of freshwater highlights why subsurface exploration is an absolute necessity for economic growth.
The Unequal Allocation of Freshwater
Global hydrological data shows that approximately 97% of all water on Earth is saline. Our vast oceans hold this salt water. Polar ice caps, permanent glaciers, and deep permafrost lock away more than two-thirds of the remaining 3% of freshwater. Therefore, groundwater makes up a staggering 99% of the world’s liquid freshwater supply. Surface bodies like rivers, wetlands, and lakes account for a mere 1%.
Key Industry Statistics
- 🌍 Agricultural Foundation: Global food production depends structurally on the subsurface. Roughly 40% to 50% of all agricultural irrigation water comes directly from underground aquifers. In arid regions, this dependency exceeds 80%.
- 💧 Human Consumption: Over 2.5 billion people rely exclusively on groundwater aquifers. These systems satisfy their basic, daily drinking and sanitation needs.
- 📉 Industrial Depletion: Global groundwater extraction rates have increased exponentially over the past half-century. Humanity extracts over 900 cubic kilometers of water from the earth every single year. This aggressive pumping causes a widespread drop in water table levels.

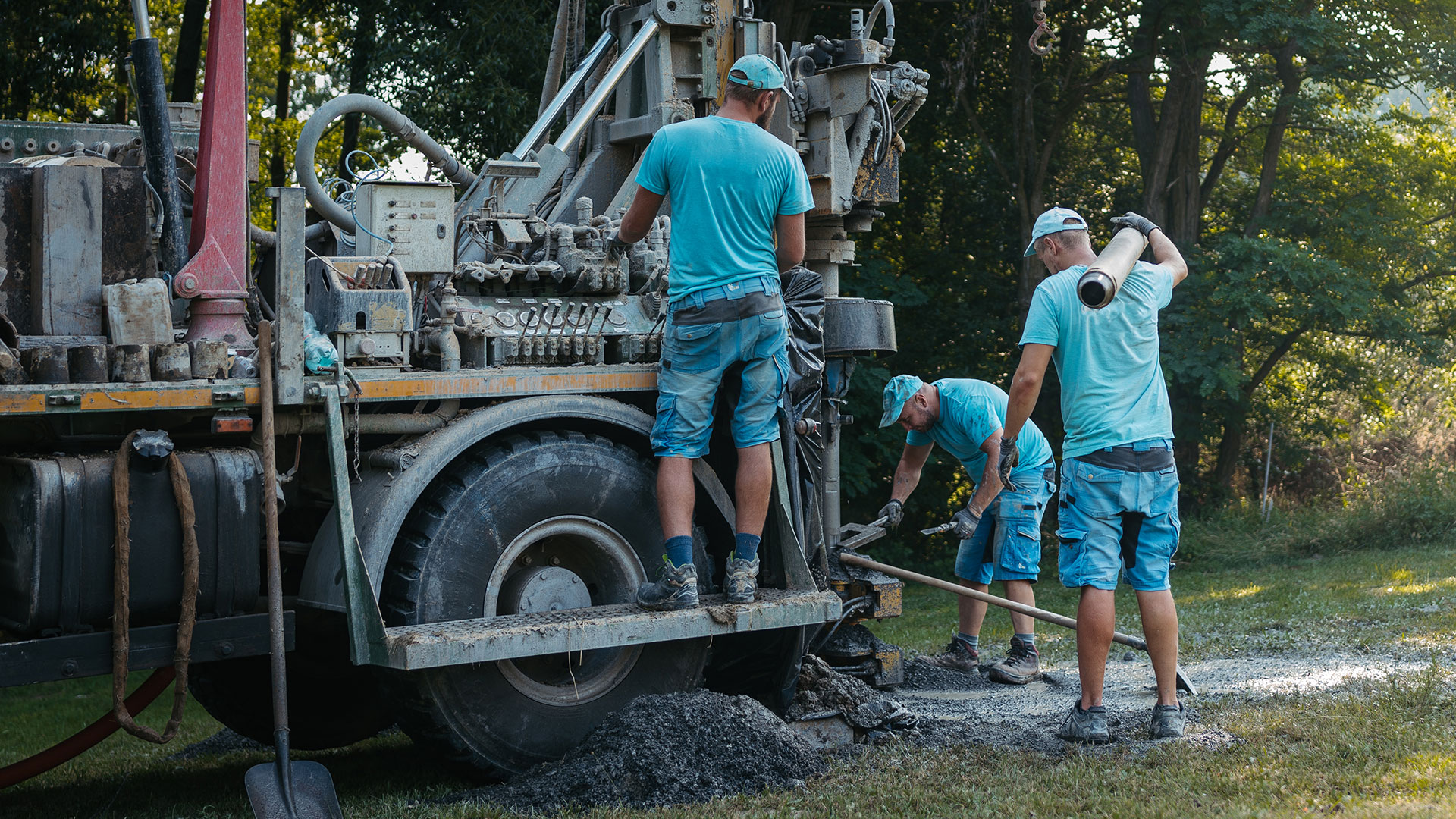

- 💸 The Cost of Blind Drilling: Drilling firms report that drilling without professional electronic scanning results in a 45% to 55% failure rate. Teams hit dry formations, low flow rates, or un-pumpable brine. Deep-well drilling costs anywhere from $3,000 to over $50,000. Therefore, blind drilling poses a severe financial hazard.
Understanding Underground Geology: Aquifers and Depth Zones
A common misconception exists that groundwater flows in massive underground rivers. People often imagine giant, open caves filled with water. Cave streams do exist within specific limestone formations, known as karst topography. However, the vast majority of groundwater fills microscopic pore spaces, fractures, joints, and gravel layers. Hydrogeologists categorize these water-bearing formations into different types of aquifers.
1. Shallow Unconfined Aquifers (The Phreatic Zone)
The water table defines the upper boundary of an unconfined aquifer. This water table contacts the atmosphere directly through the unsaturated soil layers above it. These aquifers are typically shallow. They sit at depths ranging from 5 meters to 60 meters.
Shallow unconfined aquifers depend highly on immediate rainfall infiltration. Therefore, their levels fluctuate heavily based on seasonal weather patterns, droughts, and regional pumping. Furthermore, these aquifers lack a protective, impermeable layer above them. This lack of protection makes them highly susceptible to surface pollution, such as agricultural pesticides, industrial chemicals, and septic tank leakage.
2. Deep Confined Aquifers (Artesian Systems)
An impermeable layer of solid rock, dense shale, or heavy clay traps a confined aquifer. This confining layer acts as a pressurized shield. Water enters the aquifer from a distant, higher-elevation recharge zone. Because of this layout, the water trapped inside remains under immense hydrostatic pressure.
Confined aquifers sit deep within the earth. They frequently span depths from 100 meters to over 800 meters. When a drill bit punctures a confined aquifer’s upper shield, internal pressure forces the water to rise naturally up the borehole. This phenomenon creates an artesian well, which often requires no immediate pump. Consumers highly seek water from these depths. Thick mineral strata filter the water naturally over hundreds or thousands of years, leaving it incredibly pure.
| Geological / Operational Metric | Unconfined Aquifer (Shallow Zone) | Confined Aquifer (Deep Artesian Zone) |
|---|---|---|
| Typical Depth Range | 5 to 60 meters | 100 to 800+ meters |
| Hydrostatic Pressure | Atmospheric pressure only | Highly pressurized (Artesian capability) |
| Water Purity & Safety | Vulnerable to surface pollution and bacteria | Extremely pure; highly mineral-filtered |
| Drilling Expense Profile | Low to moderate; fast execution | Extremely high; requires heavy rotary rigs |
| Detection Challenges | Prone to surface moisture interference | Requires deep-penetrating, specialized frequencies |
The Evolution of Groundwater Detection Methodology
Humanity’s quest to locate subterranean water has evolved through three distinct technological eras. Understanding this trajectory highlights why modern long-range locators have become so vital.
The Pre-Scientific Era: Dowsing / Water Witching
For centuries, individuals relied on dowsing or “water witching.” Practitioners held Y-shaped tree branches, copper rods, or pendulums. Dowsers believed these tools would dip or cross when passing over water due to natural bodily energies. Controlled scientific testing by geological societies has repeatedly shattered these claims. Dowsing performs no better than random guessing. Relying on it for multi-thousand-dollar drilling operations creates severe financial risk.
The Traditional Scientific Era: Galvanic Electrical Resistivity
In the 20th century, geophysicists introduced Electrical Resistivity Tomography (ERT) and seismic testing. ERT crews drive dozens of heavy steel stakes deep into the ground along a straight grid line. They connect these stakes with hundreds of meters of heavy copper cables. Next, they run high-voltage electrical currents directly into the soil. The system measures how much resistance the ground puts up. Water reduces electrical resistance, allowing computers to map potential saturated zones.
ERT is scientifically sound but has massive real-world drawbacks. It is physically exhausting and requires hours of setup for a single cross-section. It also demands extensive data-processing software. Operators cannot use it to scan massive, rugged terrains rapidly.
The Modern Era: Long-Range Electromagnetic Resonance
The latest breakthrough in exploration geology combines advanced digital signal processing with long-range electromagnetic tracking. Large volumes of water move through fractured underground rock layers or under pressure within confined aquifers. This movement generates distinct electrostatic, ionic, and low-frequency electromagnetic fields. Modern locators tune directly into these subterranean frequencies. This ability allows operators to scan square kilometers of land in minutes.
In-Depth Technological Breakdown: The WF-101-III Groundwater Locator
Generic equipment fails when you search for deep water tables across vast expanses of land. The WF-101-III Groundwater Locator represents a major leap forward in long-range geophysical detection engineering. MWF Metal Detectors built this device specifically for extreme depths and rugged field use. It now stands as the gold standard for hydrological exploration specialists globally.
Let us dissect the inner workings, architectural capabilities, and advanced software features of the WF-101-III.
1. Unmatched Scanning Depth and Tracking Range
The primary engineering triumph of the WF-101-III lies within its incredible operational capacity. Most standard water finders struggle to achieve clear signal readings beyond 100 meters. Soil attenuation and rock interference easily block their weaker signals. The WF-101-III shatters these limitations completely:
- 🎯 800-Meter Depth Capacity: The transceiver arrays on the device penetrate deep geological stratifications. They reach a true detection depth of up to 800 meters (2,624 feet). This power allows operators to find deep artesian systems easily. It tracks water trapped deep beneath solid basalt, granite, or limestone shielding layers.
- 🎯 2500-Meter Frontal Range: The long-range locator system projects its search tracking radius out to an astonishing 2500 meters (8,202 feet) horizontally. Therefore, an operator standing in the middle of an arid desert can locate a hidden water stream kilometers away. They do not need to walk the entire perimeter with heavy equipment.
2. Multi-System Search Capabilities
The WF-101-III does not rely on a single, isolated detection method. Instead, it utilizes an advanced multi-system approach to double-check signals. This design eliminates the risk of costly false positives:
- 🛰️ Long-Range Locator (LRL) System: This system uses two advanced tracking antennas connected to a sensitive handheld receiver unit. The system detects the micro-electromagnetic fields that flowing or pressurized underground water bodies generate. Once the device picks up a water source, the antennas automatically cross and orient themselves. They guide the operator along a direct path to the exact center of the water accumulation point, known as the “Zero Point.”
- 🔊 Acoustic and Ionic Verification: Once the operator reaches the zero point, the device utilizes a secondary acoustic verification tier. This system filters and amplifies subterranean acoustic vibrations and ionic resonance fields. It gives the operator clear auditory and visual confirmation on the main control unit that water is definitively present.
3. Advanced Target Discrimination and Mineral Filtering
Mineral interference plagues traditional groundwater detection equipment. Soils rich in iron ore, wet clay, or highly mineralized basalt rock can trick basic locators. They register a water signal when none exists. The WF-101-III addresses this problem with sophisticated built-in discrimination software:
- 💧 Fresh Water Mode: This mode tunes the transceiver to the precise resonant frequency of pure, low-salinity groundwater. It serves farming operations looking to drill irrigation wells or communities looking for drinking water.
- 🧂 Salty/Brine Water Mode: This setting allows the user to isolate highly saline water bodies deliberately. It helps coastal drilling projects identify the saltwater-freshwater interface line, preventing the accidental contamination of clean wells.
- 🧪 Mineral Water Mode: This targets highly mineralized, thermal, or sulfurous underground springs. Commercial bottling companies or geothermal developers use this mode frequently.
- ⚡ Automatic Ground Balancing (AGB): The device reads the baseline electrical conductivity and mineralization levels of the soil immediately at power-on. It then automatically recalibrates its signal output to see through these mineral barriers, ensuring clean and accurate readings.
4. Ergonomic Architecture and Intuitive User Interface
Despite its complex internal computational power, operators can use the WF-101-III easily without a science degree. The interface features an ultra-bright, high-definition TFT color screen. It remains perfectly readable under direct, blinding desert sunlight. The operating system supports multiple major international languages. This allows field workers across the globe to adjust depths, search ranges, and water target types with simple button inputs.
The manufacturer constructs the device from high-impact, military-grade polymer plastics. This casing ensures it can withstand drops, dust storms, mud exposure, and extreme operating temperatures. It performs flawlessly from below freezing up to scorched desert conditions exceeding 50°C.
—
Step-by-Step Practical Application: Operating the WF-101-III in the Field
Operating the WF-101-III in the field follows a straightforward, professional process from start to finish.
Phase 1: Initial Field Layout and Setup
First, the operator unboxes the WF-101-III from its heavy-duty transit case at the target survey location. They insert the smart ground probe into the earth to gauge local mineral density. Next, the operator powers up the main control unit. They use the on-screen menu to select the desired parameters. For high-quality drinking water, the operator selects “Fresh Water Mode,” sets the target front range to 1500 meters, and chooses a maximum depth threshold of 400 meters.
Phase 2: Executing the Long-Range Scan
The operator holds the receiver handle comfortably at chest height. This allows the dual high-performance tracking antennas to balance freely. The operator slowly sweeps in a 360-degree circle. Suddenly, the antennas lock onto a specific direction, pulled by the subterranean electromagnetic frequency of an aquifer vein. The operator walks along this path. If the antenna deviations intensify, the user is moving closer to the water.
Phase 3: Pinpointing Coordinates and Calculating Depth
The operator approaches the target from three different angles to execute triangulation. They mark the exact intersection point where the antennas consistently cross to find the “Zero Point.” This point marks the optimal location to position the drill rig. Next, the operator activates the digital depth calculation software integrated into the WF-101-III. The device analyzes the return signal delay and presents a highly accurate reading on the LCD screen, detailing exactly where the aquifer begins.
—
The Mechanical Science of Deep-Well Groundwater Extraction
The physical extraction process begins after the WF-101-III provides the exact location and depth profile of your target aquifer. Crews must execute this engineering sequence carefully to protect the well from collapsing.
1. Selecting the Correct Drill Rig
The depth calculated by your locator dictates the specific drilling rig required for the site. For shallow depths under 50 meters in soft soil, a basic cable-tool rig suffices. However, for the deep targets located by the WF-101-III, crews deploy a Heavy Rotary Drill Rig. These machines use massive, diamond-tipped or tungsten-carbide roller cone drill bits. They rotate under immense downward hydraulic pressure, cutting through solid granite and volcanic rock with ease.
2. Circulating Drilling Mud
The drill bit grinds deep into the earth. Simultaneously, a specialized fluid known as “drilling mud” pumps continuously down through the hollow drill pipe. This mud consists of a mix of water and bentonite clay. It serves three vital functions: it cools and lubricates the hot drill bit, carries the pulverized rock cuttings back up to the surface, and exerts outward pressure against the bare walls of the borehole to prevent caving.
3. Installing Casing and the Well Screen
Once the drill reaches the target depth verified by the WF-101-III, the crew pulls the drill string out, leaving a clean, deep hole. Workers then drop long sections of heavy-duty steel or high-pressure thick-walled PVC pipe into the hole. Engineers call this pipe the Well Casing. At the very bottom, right where the casing passes through the water-bearing aquifer rock, workers install a specialized Well Screen. This screen features precisely engineered micro-slots that allow high-pressure water to pour into the well while completely blocking out sand and gravel.
4. Grouting and Sanitary Sealing
Filthy surface water, animal waste, and agricultural fertilizers must not leak down the outside of the well pipe. Such leaks ruin deep aquifers. To prevent this, workers fill the empty space between the outside of the casing pipe and the raw rock wall with a thick slurry of neat cement grout. This creates an un-breachable sanitary seal from the surface down to a safe depth.
5. Well Development and Pump Deployment
Next, crews develop the well by blasting high-pressure air or water down the hole. This process flushes out any leftover drilling mud and opens up the natural rock pores surrounding the well screen, maximizing the well’s daily water yield. Finally, technicians lower a heavy-duty, multi-stage Submersible Electric Pump deep down into the water column. They connect it to a heavy power cable and a surface discharge pipe, allowing water to flow up into surface storage tanks.
| Extraction Phase | Primary Equipment Used | Main Objective / Outcome |
|---|---|---|
| 1. Geophysical Locating | WF-101-III Long-Range Finder | Eliminates financial risk by finding the exact depth and coordinates of water before breaking ground. |
| 2. Borehole Excavation | Rotary Drill Rig & Bentonite Mud | Cuts smoothly through rock layers while keeping the deep vertical shaft stable. |
| 3. Structural Stabilization | Steel/PVC Casing & Well Screens | Prevents rock collapses while allowing pure water to fill the inner well shaft. |
| 4. Environmental Sealing | Neat Cement Grout Pump | Blocks surface pollution and bacteria from leaking down into the clean aquifer. |
| 5. Yield Optimization & Flow | Air Surging & Submersible Pumps | Cleans the well pores and actively pumps the pure water up to surface storage facilities. |
Frequently Asked Questions (FAQ)
❓ Can the WF-101-III find water in extremely dry, hyper-arid desert environments?
Yes. The WF-101-III excels in hyper-arid terrains where surface water is utterly nonexistent. It does not look for surface moisture. Instead, it detects deep, pressurized ionic frequencies and electromagnetic fields generated by deep-seated confined aquifers, making it an incredibly reliable tool for desert reclamation projects.
❓ What makes the WF-101-III superior to cheap water finder devices sold online?
Cheap water finders typically rely on basic, un-filtered receiver boards. Common soil minerals, iron deposits, and overhead power lines easily overwhelm these weaker devices, resulting in constant false readings. The WF-101-III utilizes a proprietary microchip processor equipped with Automatic Ground Balancing (AGB) and specialized signal discrimination filters, ensuring it only responds to authentic subterranean water signatures.
❓ Is a special license or university degree required to operate the WF-101-III?
No. While the technology inside the device is highly sophisticated, the software user interface offers direct, intuitive use. Anyone with basic mechanical aptitude can master the device within a few days of practicing with the user manual. The clear graphical display guide makes adjusting depth thresholds and scanning frequencies completely straightforward.
❓ How accurate is the depth calculation feature on the WF-101-III?
When operated properly according to manufacturer guidelines and backed by careful field triangulation, the WF-101-III provides an incredibly high depth accuracy rate. It frequently matches actual drilling logs within a very small margin of error. This precision allows well drillers to estimate casing costs and labor hours accurately before the drill rig even arrives on-site.
❓ Does the device operate well in mountainous areas with dense rock layers?
Absolutely. The long-range low-frequency signals utilized by the WF-101-III travel cleanly through dense rock strata, including granite, basalt, and limestone. Because deep water in mountainous zones usually collects within geological fault lines and rock fractures, the device is ideal for pinpointing those exact structural sweet spots.
—
Conclusion: Securing Your Water Future with Precision Technology
Locating and extracting deep groundwater is one of the most critical, high-stakes investments an individual, business, or government agency can make. Attempting to execute deep well drilling based on guesswork, outdated dowsing methods, or low-grade equipment is a recipe for catastrophic financial loss. Understanding the underlying science of aquifers, recognizing the physical stages of borehole engineering, and respecting the strict limits of environmental sustainability are all non-negotiable components of a successful project.
However, the foundational step of the entire process will always remain accurate, electronic pre-drilling localization. Equipping your exploration team with the WF-101-III Groundwater Locator gives you an invaluable, deep-penetrating view of what lies hidden far below the surface. With its massive 800-meter scanning depth, 2500-meter horizontal range, multi-system validation structure, and advanced soil mineralization filtering, the WF-101-III stands as the ultimate technological shield against dry holes. Take total control of your water security, eliminate drilling risks, and maximize your exploration budget by upgrading your equipment setup with the power of MWF technology today.
—
Global References and Further Academic Reading
- To study the broad, foundational physics of underground water systems, read Wikipedia’s Comprehensive Groundwater Hydrology Article.
- Explore the comprehensive geological and structural dynamics of pressurized subterranean water formations via Aquifers on Wikipedia.
- Analyze the engineering protocols, historical machinery, and mechanical challenges of boring deep shafts by visiting the Water Well Engineering and Construction Guide on Wikipedia.
