MF 9700 QUINARY

Name: MF 9700 QUINARY
SKU: MF9700QUINARY
Price: 9900 USD
Availability: InStock
Rating: 5.00 (6 reviews)

Rated 5.00 out of 5 based on 6 customer ratings

(6 customer reviews)

Original price was: $12.375.Current price is: $9.900.

Battery

6 Work hours

Screen

TFT Color Monitor‎ 4.3″

Device system

6 Different Systems

Discrimination Between targets

Yes(Optional)

Depth

From 0 To 70m

Distance

2000m

SKU: MF9700QUINARY Categories: Acoustic detection Systems, CAVES DETECTORS, GEMS DETECTORS, Geophysical Survey Systems, GOLD DETECTORS, Ground Imaging Systems, Integrated Detection Systems, Ionic Search Systems, Long Range Locator Systems, METAL DETECTORS, TREASURES

Description

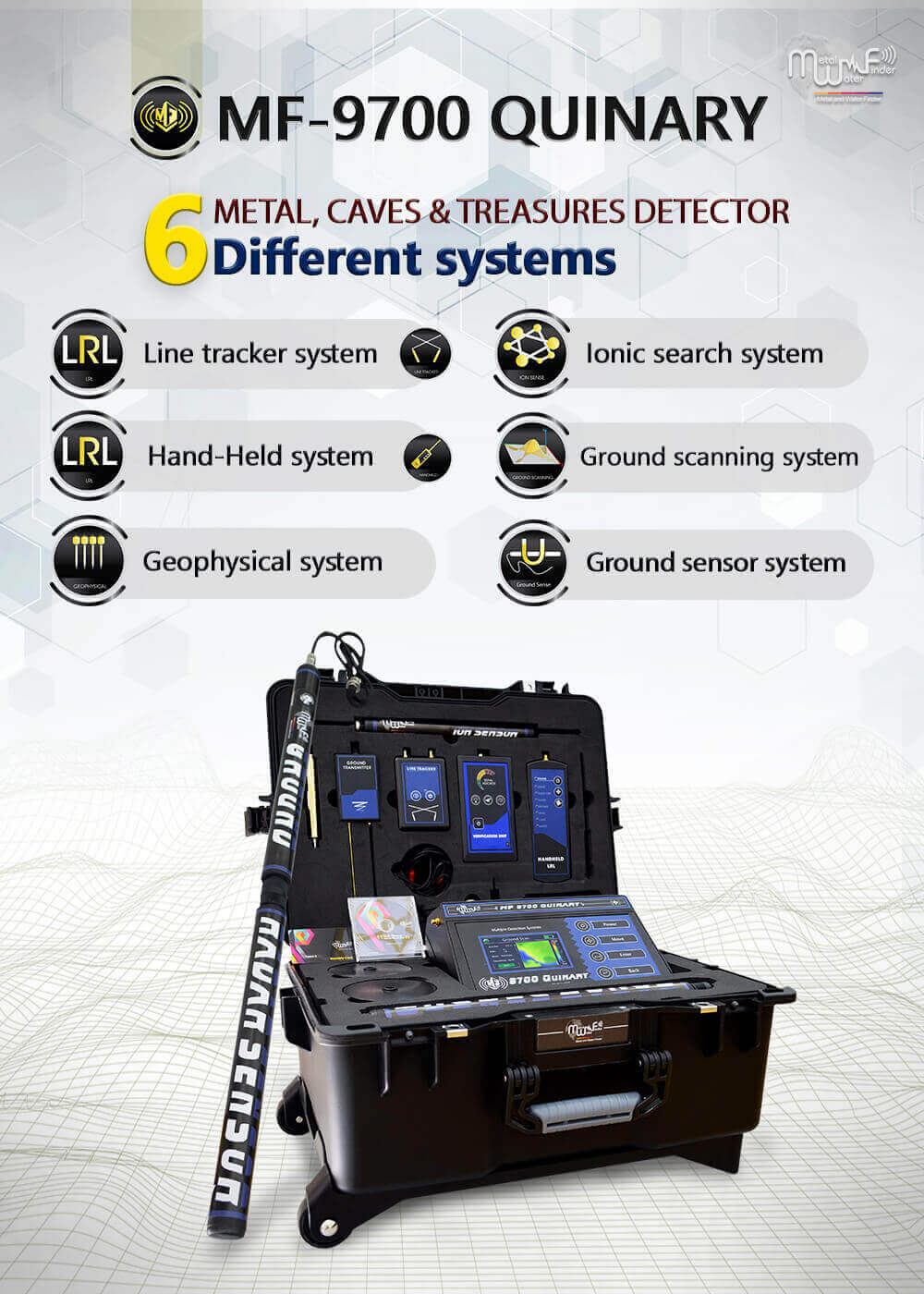

MF 9700 QUINARY – With 6 Professional Metal Detection systems at

the request of our customers ongoing to get an integrated search station for the detection and exploration of mineral and underground resources, at the same time far away from those big and bulky machines that are difficult to deal with and work out, especially in the rugged and mountainous areas, and in areas that need to be guaranteed and accurate devices in the results and easy to use at once.
The MWF group and after the diligence and research took several years to produce MF 9700 QUINARY, a machine with substantive and technical specifications that can not be underestimated, supported this device by latest modern scientific systems which our group developed through several stages to get, which other did not get that, to put a new mark in the world of detection and ground survey.
Supported the device with six search systems for the detection and exploration for gold, metal, treasures, relics, groundwater, and voids, and to determine their location and confirm their presence points 100%, by using the six systems that give the user blindly trust to reach his target and find it without any hesitation.
The systems supported by the device gives you long-range scanning to detect and locate the targets from a far distance, and verification ionic search system to confirm the target, In addition to the geophysical survey techniques systems, with smart and automatic analysis of the target, type and depth, except for magnetic scanner system ( Ground Sensor) with sound data and graphic to confirm the targets sites and distinguish between them, and Finally the Ground Scan System, gives you a clear photo about the target.
All this and more is available in a single device with proven effectiveness and with a large HD color screen, displays the control systems of advanced smart programs, and displays all the results and coordinates about research and survey.

MF-9700 QUINARY” this device works with the most accurate and the latest Multi-detection systems that give you reliable and complete results about the targets underground.
Specializes in the detection and exploration of gold, treasures, metals, voids, and groundwater, and distinguishes between them, determining their locations within multiple search data about targets, types, sizes, and depths as well.
Software is a very sophisticated level of technology, that gives the user fast and easy control of all device settings and systems.
The ergonomic design and streamlined shape give you the power to search and navigate with lightweight and ease of use, which plays a big role in quick and uncomplicated results.
Language control: gives you the control to change the device language that has already been saved to another language.
For the first time globally in the detection and exploration devices exclusively at MWF Group, The device is supported with smart operating and detection systems, Smart interfaces, Power conservation system, Smart charging system, Multilanguage and remember device language, save settings, Smart control, Bluetooth technology, and factory reset.
It has a strong ability to search waves and frequencies with doubling energy, which gives it the ability to reach depths of up to 70m underground, with a front search distance of up to 2 km, Note: The front distance may differ from system to another system so that each system has a limited ability to cover the search distance.
TFT color screen 4.3-inch HD gives the user clear vision by night and day.
The smart settings Interface gives you flexible and fast control of all the functions and programs with ease.

The device’s general settings menu gives you control of the following:

Control the level of screen brightness feature, which gives you adequate lighting for day or night, and reduce the level of lighting to save energy as well.
Five levels of sound give you adequate control of sound output and signals sounds of search results, as well as vibrator mode, or silent mode and sufficiency by visual results.
The Selection Interface of the search system, gives you a quick move between search system modes, to selecting the search system, which detects through.
Battery and charging smart feature, which gives the user accurate tracking of battery level and notices about battery level and alerts before the entry into force of power, with smart charging systems that give the user also follow up the battery charge when the device ON or OFF, and to find out the level of charging which added, all in real-time.
The device and accessories featuring by small size, which gives quick movement with wireless communication orders and are subject to dismantling and assembly of all units and systems attached.
Wireless connection System, to connect with the accompanying search systems, which sends wireless orders to search system which to be explored by it and change its settings remotely, without the need to connect the wires and other things that may impede and delayed the search process and results.
Buttons Control Panel, composed of buttons made of chrome, gives you confidence in the rapid control of the device and settings.
Automatic Tuning System (ATS) Special invention and new, registered in favor of MWF GROUP, this system provides accurate results and certain in all types of soils and terrain, because the system recognizes the soil automatically, grants the search process automatic tuning commensurate with the type of soil and properties of soil, With the abolition of any overlaps radiation resulting by the rocky and mountainous territory effect, which may affect a lot of other detectors, but this smart system, can sorting and analysis and provide the necessary levels which relate of frequency signal, voltage, and wavelength of the signal which gives results free of any errors.

Detection Systems

Detection and exploration systems supported by the device:

Teledetection Search System, and working by two systems (two methods) for detection.

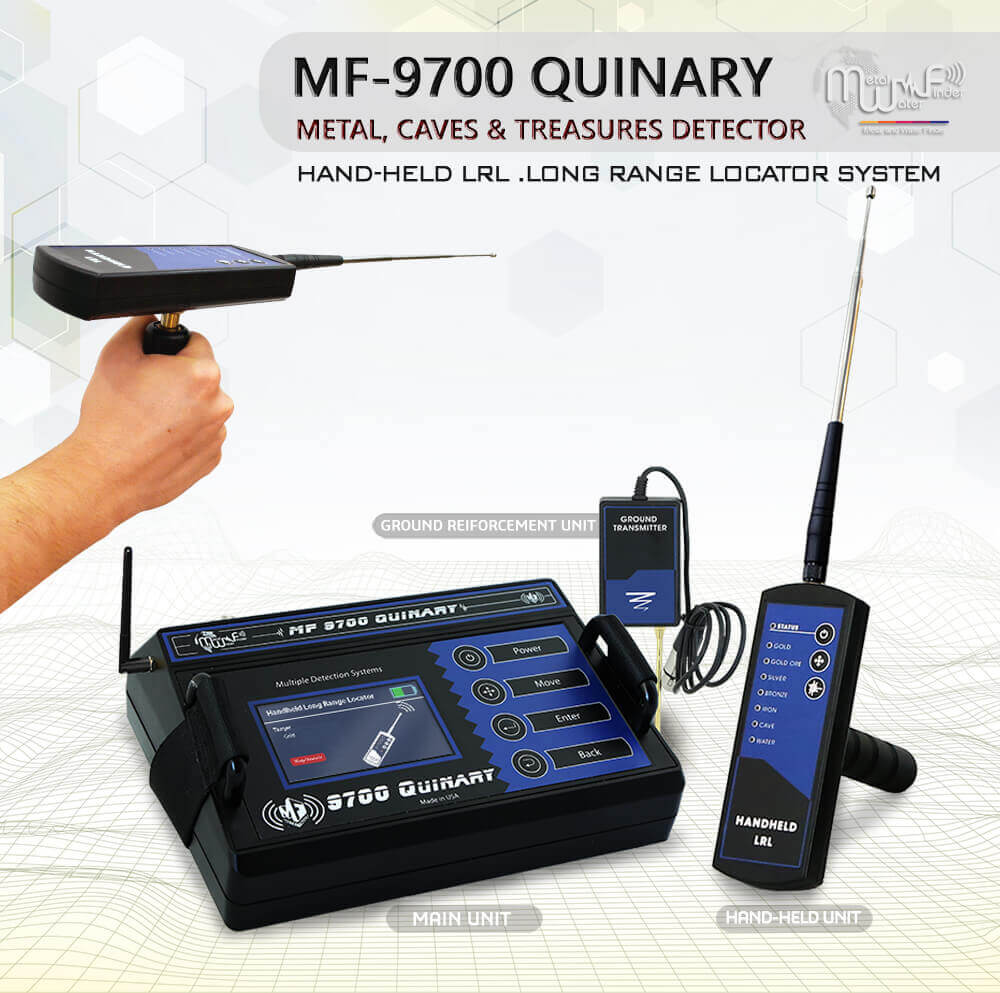

Handheld LRL:

Handheld LRL” works by the long-distance search system to detect the location of the target, are guiding the user directly to the target site, with laser LED for guidance in the night.
This unit operates on a 6-volt, through four standard AAA batteries 1.5 volts, can be used normal batteries for once, or rechargeable batteries.
Accurate results in determining targets underground to identify their paths and before reaching them.

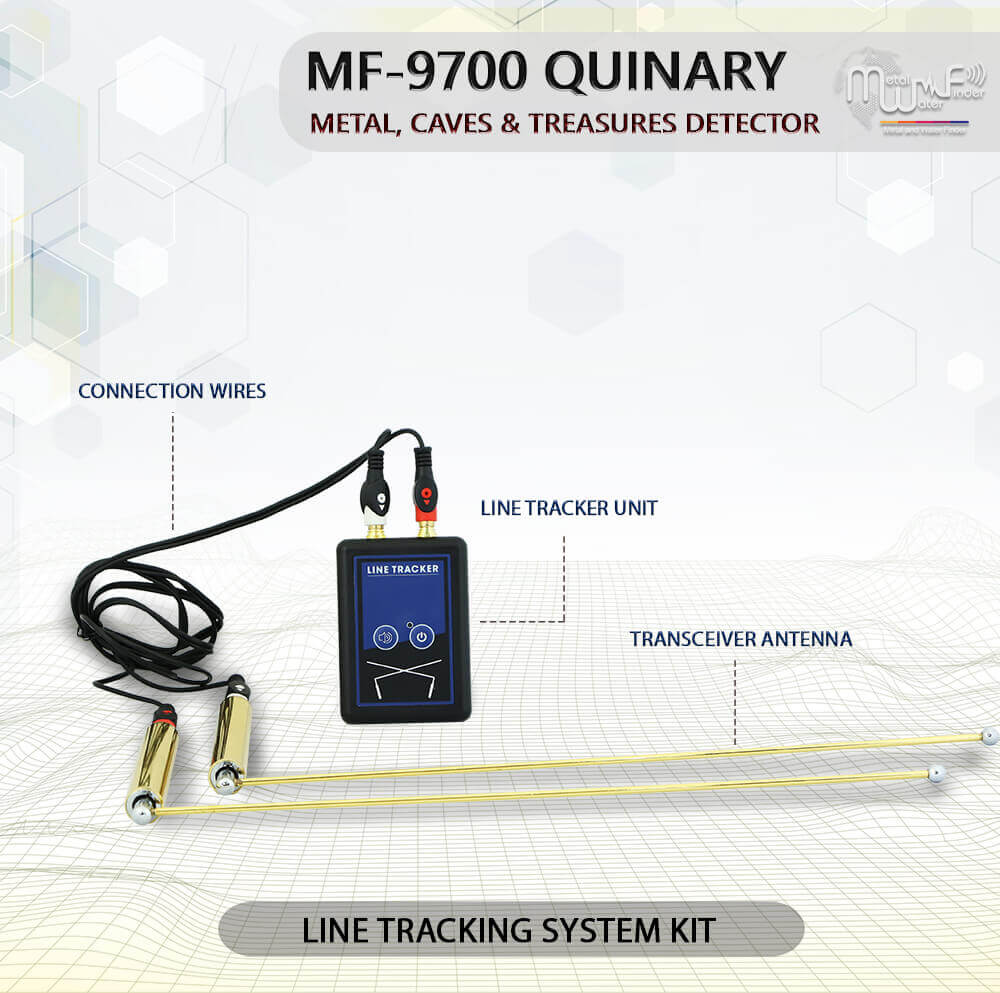

Line Tracker :

Line Tracker system, a special system to track electrical lines frequency that’s connected between the main transmitter device and the target point, It gives the user an accurate track until they reach the point of the target directly, with the latest advanced systems for remote sensing systems by wireless connection.
This unit operates on a 9-volt, through a single 9-volt battery, you can use regular batteries use one-time, or rechargeable batteries
Acoustic alerts rotate, which indicates the search process with volume control modes and silent mode as well.

Specifications of teledetection search system:

Targets List, can choose any target from this list to search for it separately, and the targets are Gold, silver, copper, diamonds, groundwater, caves, and voids.
The interface of the accurate setting for search level, Multilevel to pre-control levels of depth and distance of the search:
Depth up to 70 meters with a control property in the signal level of the searching depths, through depths options list, and starting from 0 up to the selected depth
:1m – 5m – 10m – 15m – 20m – 30m – 40m – 50m– 60m– 70m.
Distance search up to 2500m, with a control property in the level of the front broadcast wave, through the distance options list and starting from 0 up to the selected distance: 250m – 500m – 1000m– 2000m.
Smart settings Interface of the system with adjusted levels of search settings.
Selection interfaces of the detection method.

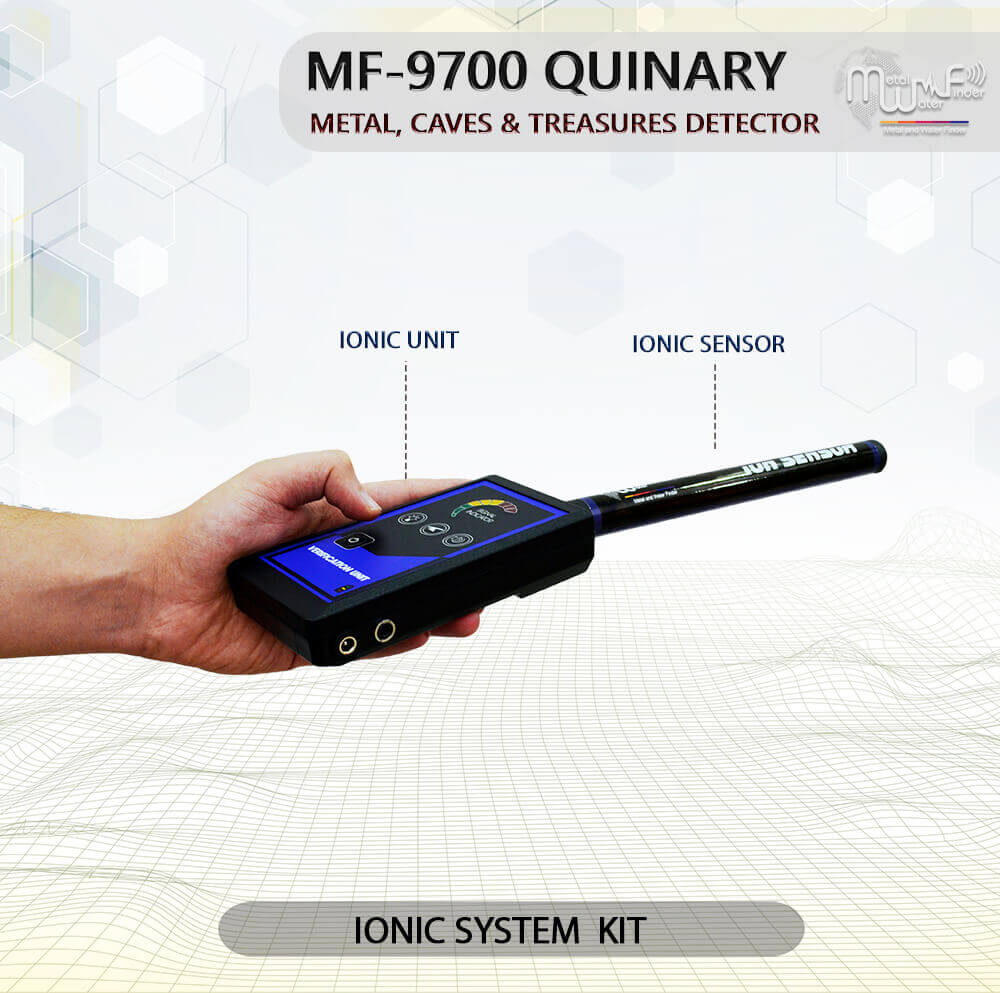

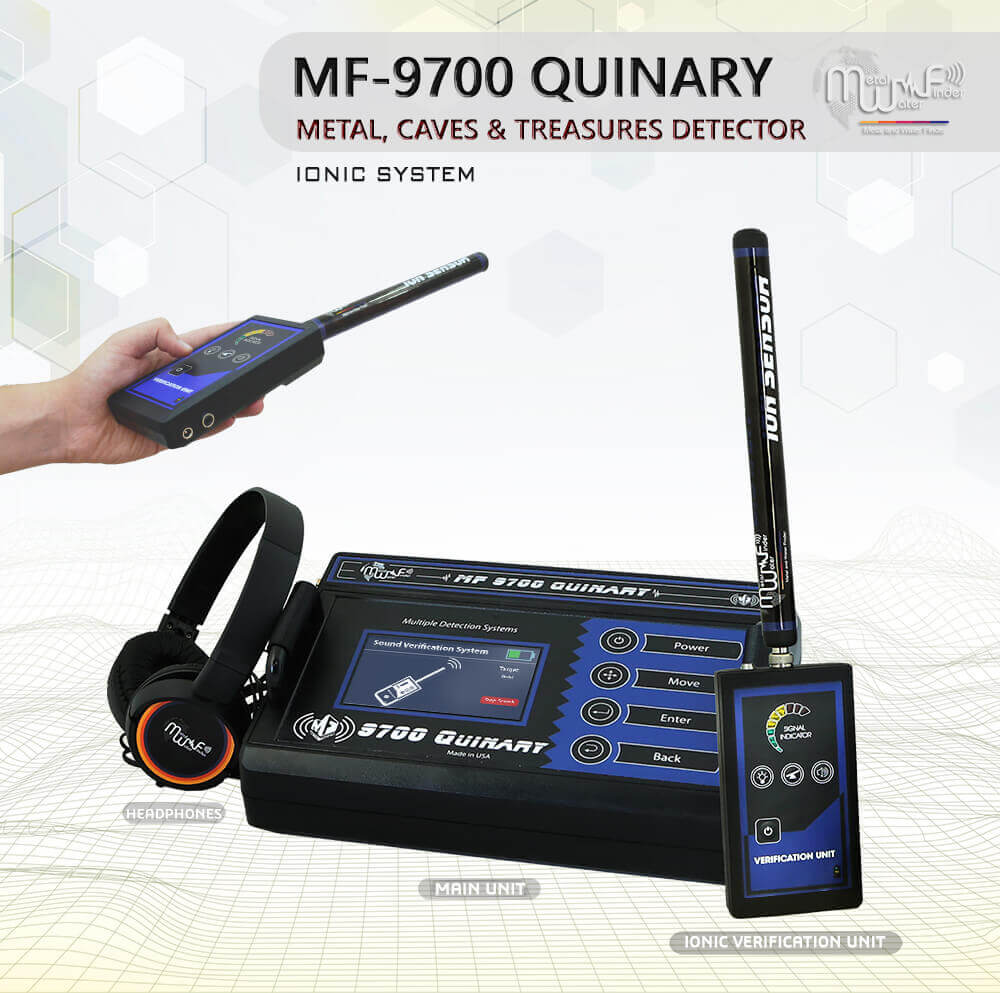

Ionic detection system ( Acoustic ):

Working on a long-range Ionian search system, to detect and search for Ionian fields of precious metals underground, and locate the location of the target from a far distance, it can be used also in the car.
Special Interface for this system, gives you a preset setup of the target type want to search for gold, silver, copper, bronze,
The ionic acoustic verification unit is working and connecting wirelessly with the main device.
The system is characterized by rapidly responding to the underlying objectives and giving complete data about the hidden target.
A great focus in the search is to sense the target sites and guides the user to the target site with less time and effort as possible.
This system gives the user multiple results, Consisting of the following:
LEDs interactive Indicator interacts upward whenever get close to the point center of targets.
Sound interactive Indicator, interacts upward whenever getting close to the point center of the target.
LED indicator of battery levels and consists of 3 levels shows the battery level.
Two internal cells of 3.7V Li-ion 3600 mAh, output 12 volt

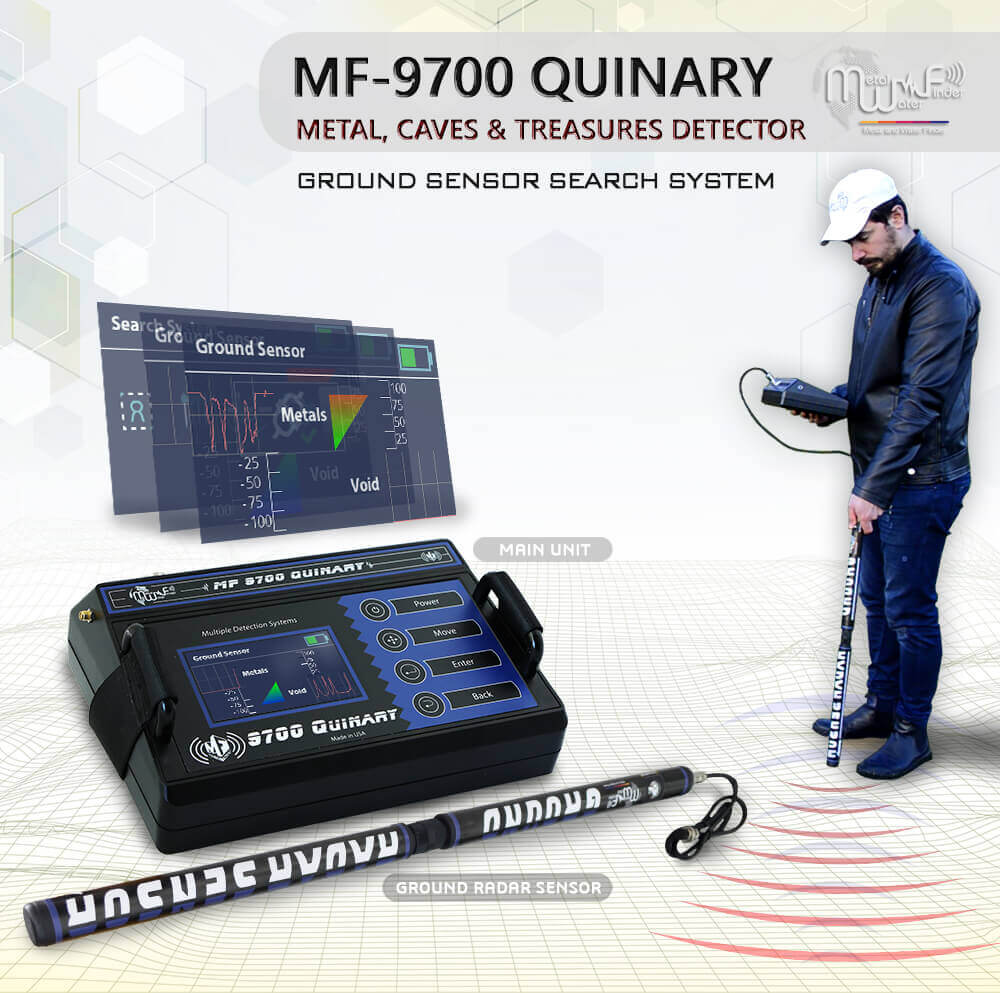

Ground Sensor System:

A ground sensor system that works to scan soil layers and get to know their contents and read fields and levels of magnetic radiation to detect and locate the locations of metal and voids underground.
The smart interface gives you absolute clarity and integrated results about the targets.
Accurate discrimination system between metals and voids.
Oscilloscope graphics imaging system to determine the size of the target.
Advanced sensors give immediate and direct results in real-time.
Accuracy Identify the target point with a graph on the screen.
A smart verification system, is about connecting the ground-sensor in the device are well, or not connected in the device.

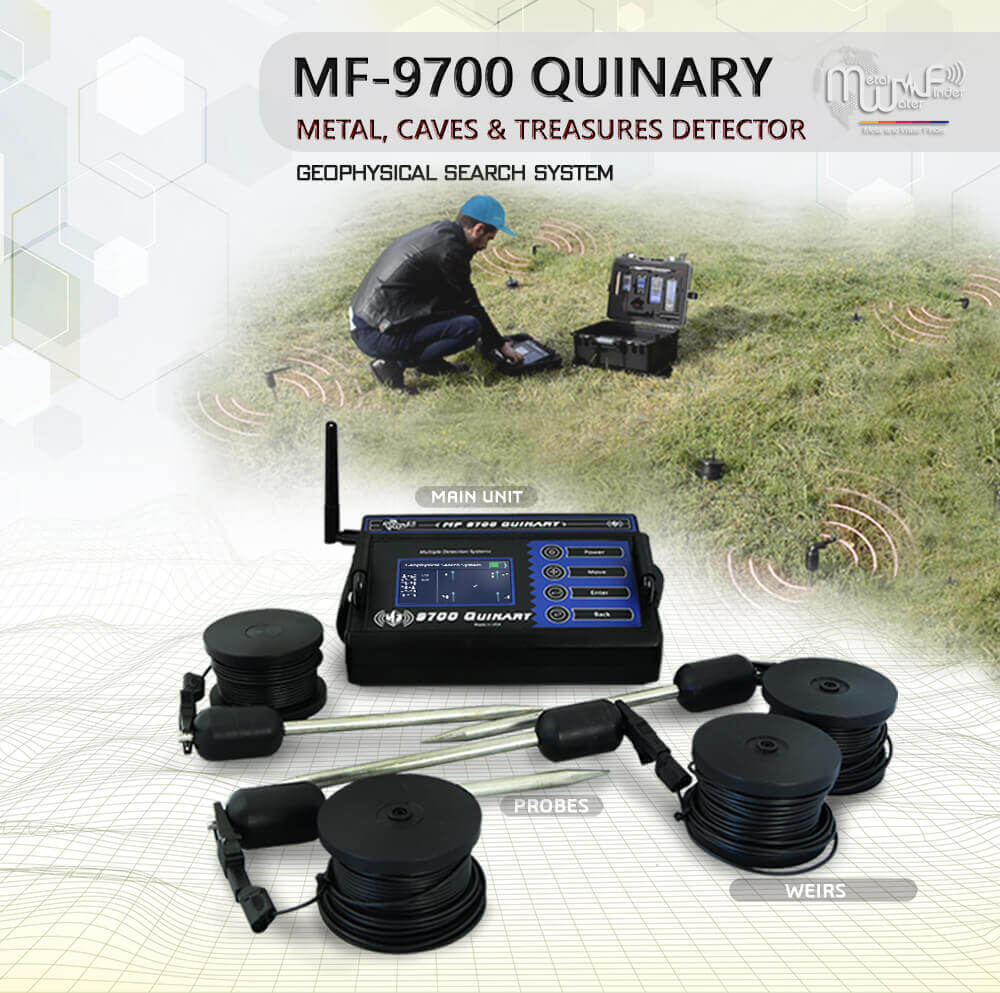

Geophysical Survey System:

The system works on measuring the intensity of the soil’s electrical resistance and identifying substances found underground and identification, and its mission to detect and explore for gold, metals, and voids underground with a property of accurate discrimination between the targets.
This system scans and detects the soil automatically, and shows complete results about the discovered targets directly on the screen.
The special display interface of this system, gives the user a piece of integrated information about the search process and search steps are automatic.
Feature of selecting types of targets discovered after scanning is complete then the system starts directs you to a site of this target point to know the full details.
Feature of automatic help messages, which appear on the screen for the user to alert on a particular command or guidance to execute a specific command.
The system works by four electric probes to cover a large search area up to 1,500 square meters and show the results of this space over a period not to exceed 3 minutes.
Property of determining the target depth and accurately, through a special system to identify and measure the depth of discovered target.
Advanced Search and identification techniques, working on functions smart detection, which works on the smart systems of detection and analysis for the target location.

Multiplier check scanning system and at the immediate time for the location, which gives the user, gives credible and proven results.
Accurate discrimination between the types of the target, and to clarify the target, type, size, and name on the screen directly.
The smart verification system of connecting the electrodes in the soil and by wire or non-connected, and clarified it on the screen through the alerts messages.

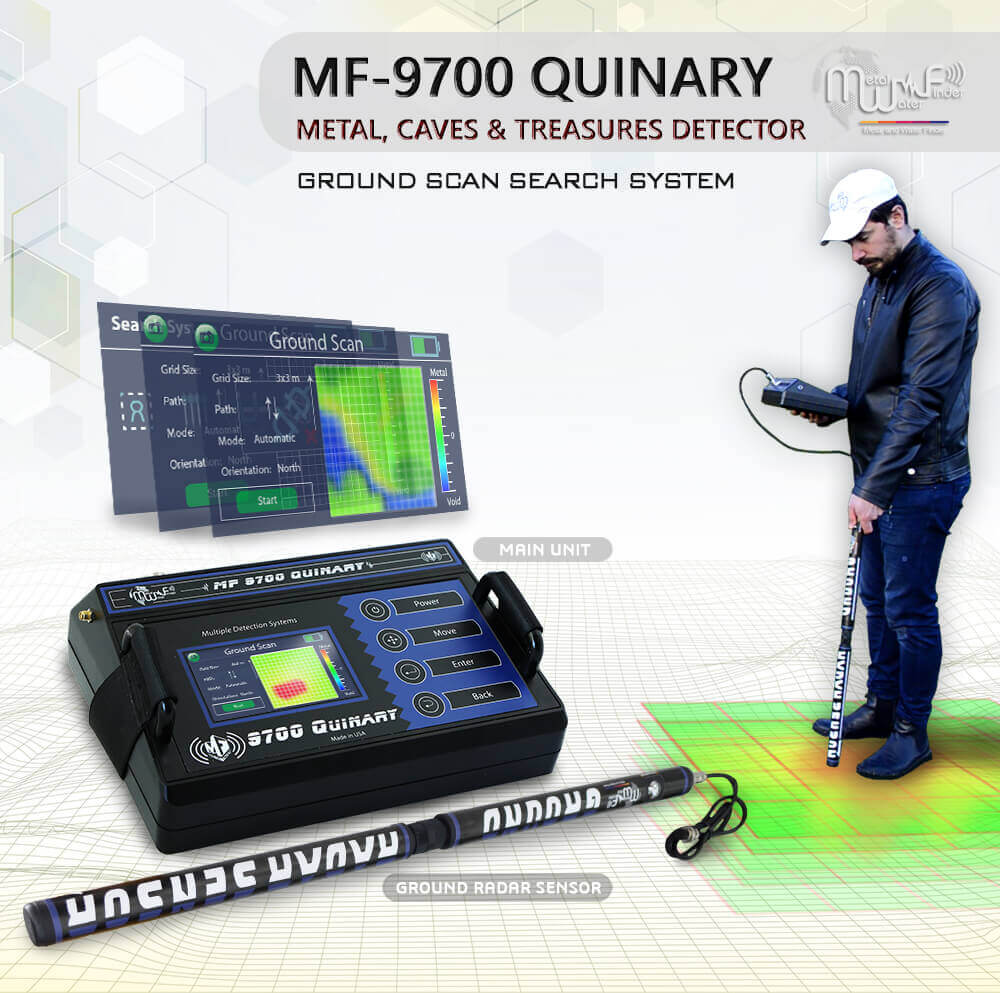

Ground Scan System:

The system works to detect and scan the ground layers, through a radar imaging system to clarify the target format underground and sizes.
No need to use the complicated analysis software and computer or other tablets, this device gives you immediate results on the device’s colorful HD screen, and in Real-time.
Full control in the imaging scanning process
Automatic scan mode
Manual scan mode
Scan dimensions are controlled through several options shown on the device’s screen
Selecting the scanning method you want to work out
Measuring and Scanning Sensors, with modern and sophisticated scientific techniques, are specialized to identify and detection of artifacts, objectives underlying, metal, and caves by distinguishing between them.
Clarify the target size and shape, with full graphical about the target and type.

Technical Specifications

SEARCH SYSTEM:	1. Teledetection ( Handheld LRL+ Line Tracker), 2. An ionic detection system (Acoustic), 3. The ground Sensor system, 4. Geophysical Survey System, 5. Ground Scan System ( Imaging Radar )
SEARCH PRINCIPLE:	1. Digital Frequency Signal Processing (DFSP) / To Receiving Electrostatic Fields of the targets, 2. Processing the Signal Received level of ionic radiation, 3. Detects the magnetic fields of targets and clarifies the values., 4. Geology survey to measure and process the levels of electrical resistance, 5. Imaging the magnetic fields of ground, And analyzing and processing the results.
OPERATING PROCESSOR:	MICROCONTROLLER PIC18 & ARM 7
OPERATING SEARCH FREQUENCY:	1. 1 kHz to 30 kHz, 2. 20 MHz, 3. 1 KHz to 10 KHz, 4. 1 MHz to 80 MHz, 5. 100 MHz
POWER:	11.1 volts 6000 mAh
POWER CONSUMPTION:	Maximum of consumption 400 mA
BATTERY LIFE:	6 work hours
CHARGER:	14.8 volt 2 amp
DISPLAY TYPE:	TFT Color Monitor‎ 4.3″ , 65536 Color, 48Mhz , CDMA GPU
SPECIALIZED IN DETECTS:	Gold – gold ore – Silver – Copper – Brass – Bronze – iron – groundwater – voids – gems – Aluminum – Diamond – emerald – meteor
TARGETS DISCRIMINATION:	Yes
TARGET SELECTION SYSTEM:	Yes, can choose the target type before starting the search from the list of targets, Or automatic detection of the discovered target.
DEPTH SEARCH:	70m for all targets and 750m for water with a control property in the depths level, through depths options list.
DISTANCE SEARCH:	2000 m with a control property in the distance level, through distance options list.
RESULTS FEEDBACK:	1. Through orientation toward target location accompanied by sound + visual + alerts., 2. Through sound, LEDs indicators and vibration., 3. Indicators of graphical data, sound, oscilloscope, and signal strength, on the screen., 4. Automatic results about the target, type, name, depth on the screen., 5. Image results of the target shape.
WIRELESS:	yes
VOICE ALERTS:	Yes
VIBRATING ALERT:	Yes
OPERATING TEMPERATURE:	From -15° C to 60° C
STORAGE TEMPERATURE:	From -15° C to 40° C
HUMIDITY:	It can be stored and work in the degree rate of air humidity of level 90%.
WEIGHT:	14 kg All accessories and parts
DIMENSIONS:	28X20X9 cm Main unit
BAG DIMENSIONS:	52X40X28 cm In the bag

Accessories

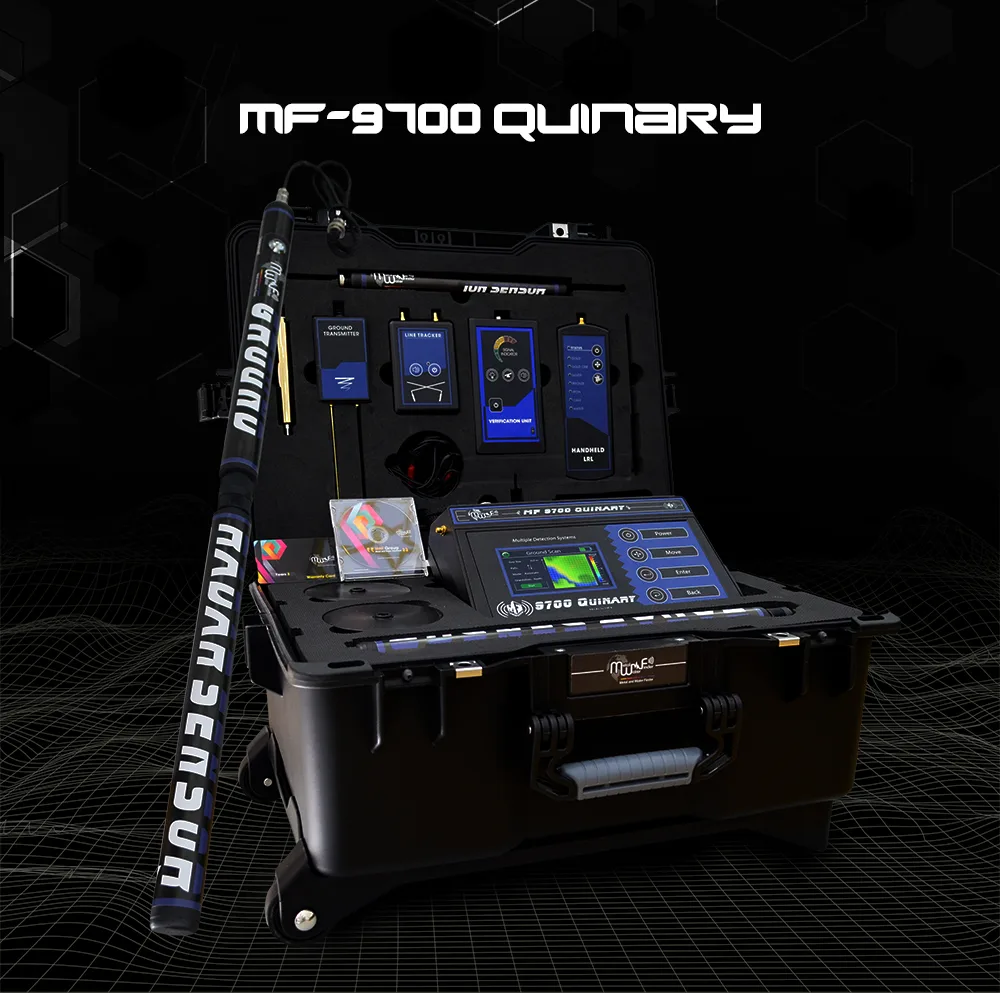

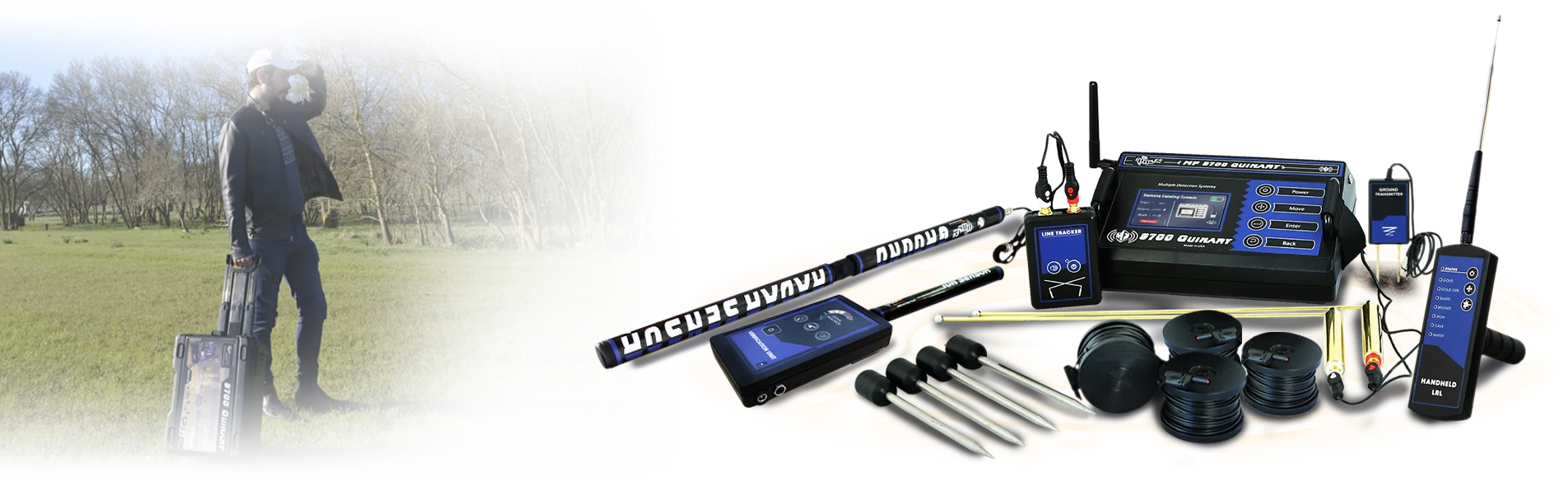

Parts & Accessories:

The main unit of the device (the controller).
Wireless connection antenna.
Ground transmitter unite.
Line tracker system device + wires connecting + tracking antennas.

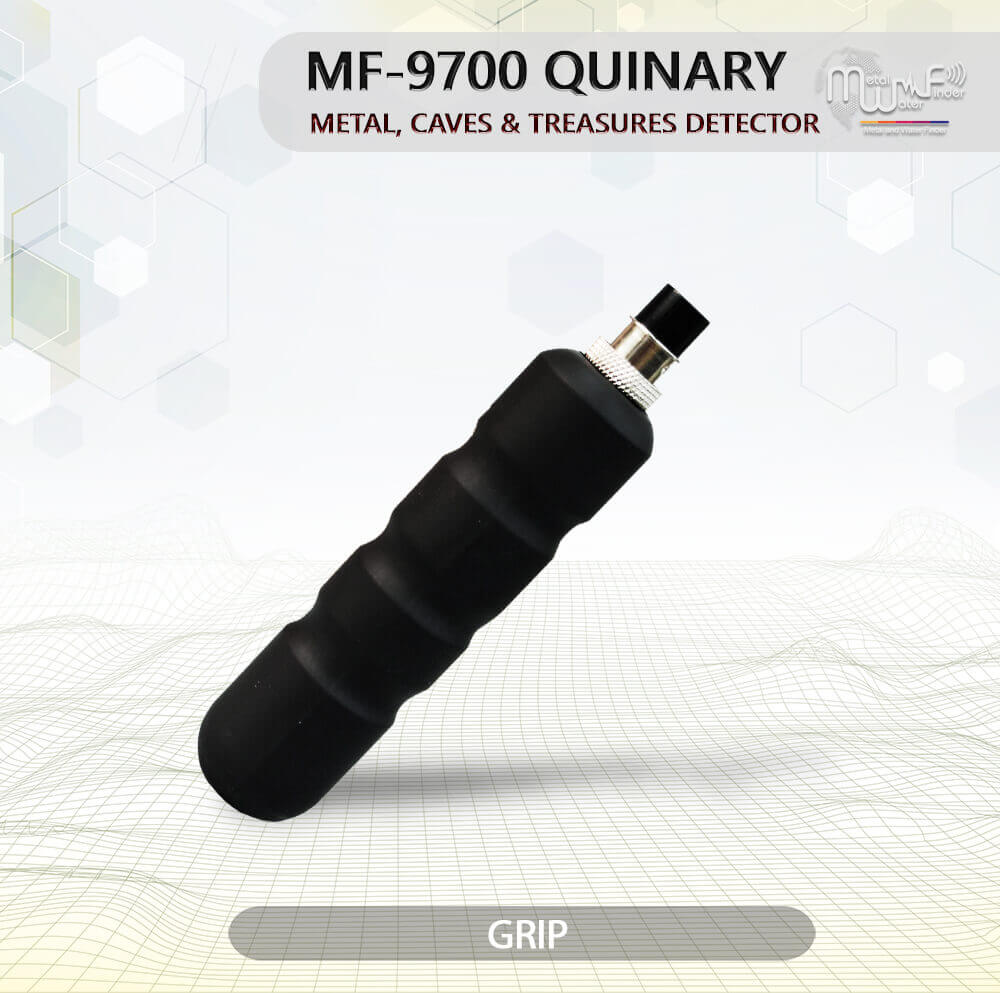

Handheld LRL search device + transceiver antenna + Grip.
Verification ionic device + ionic sensor unit.

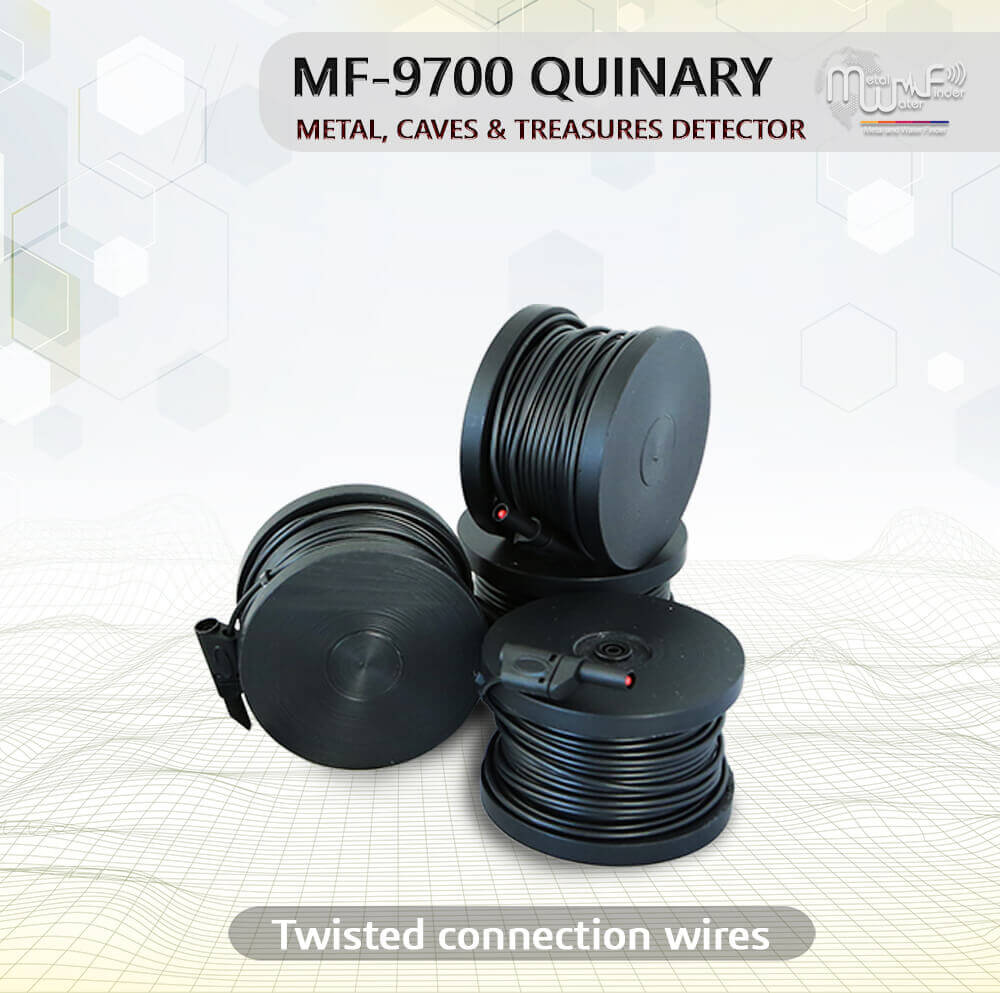

4 Cord reel cable with 4 electro-rod
Ground radar sensor unit.
Device bag.
Certificate of Guarantee
User’s Guide.
Tutorial DVD.

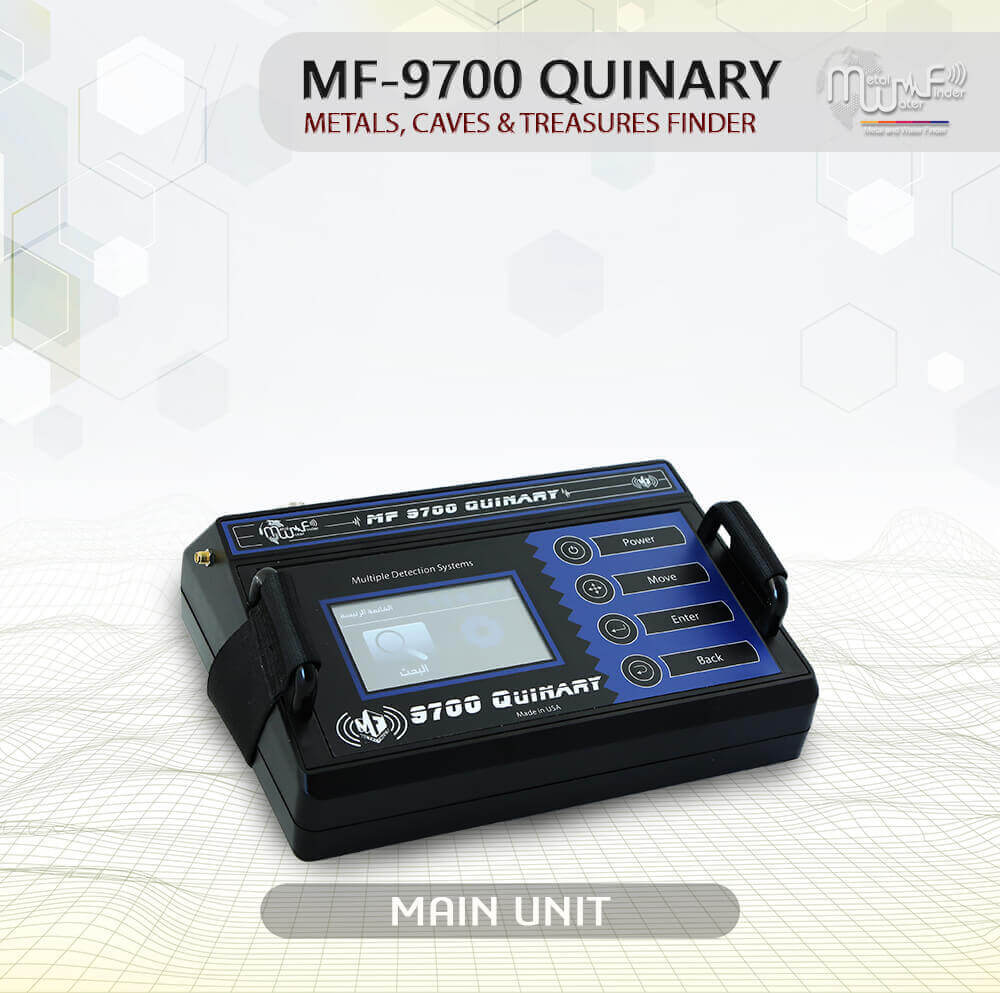

Main Unit

Lin Tracker

Ionic Unit

Hand-Held

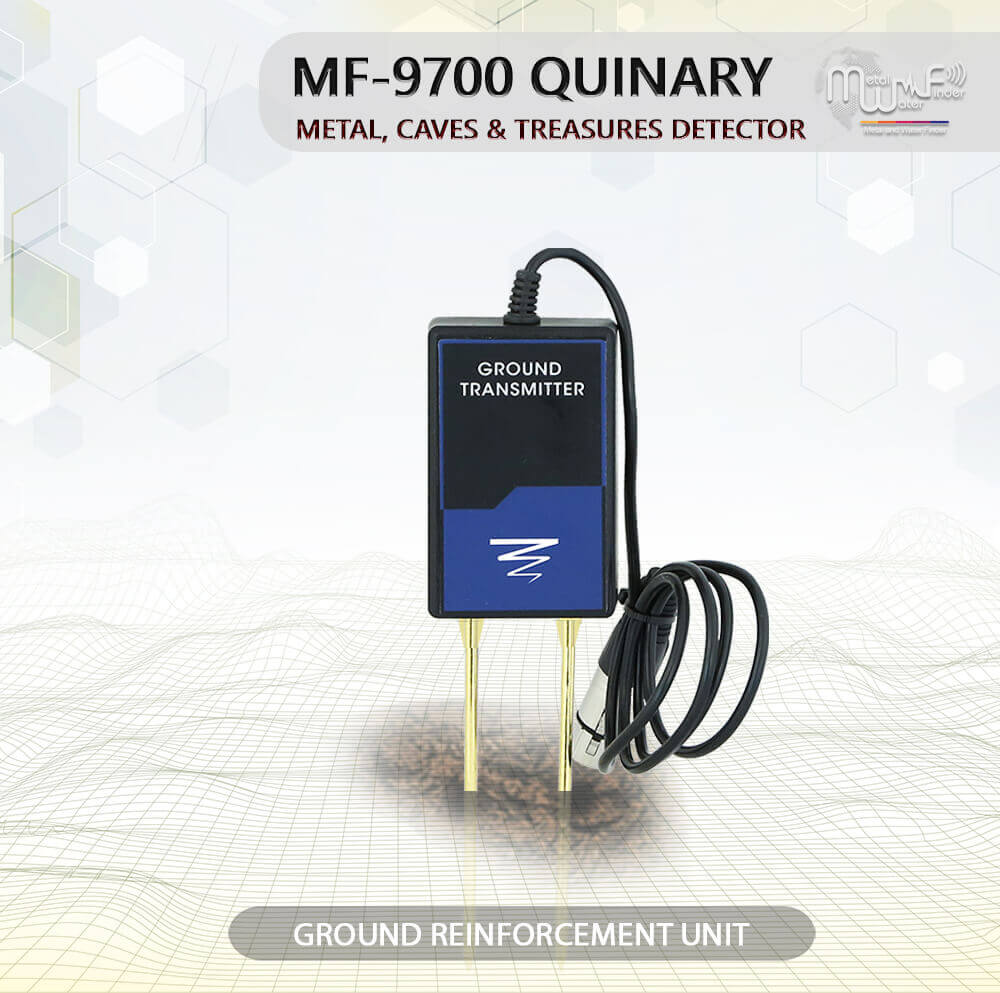

Ground Transmitter

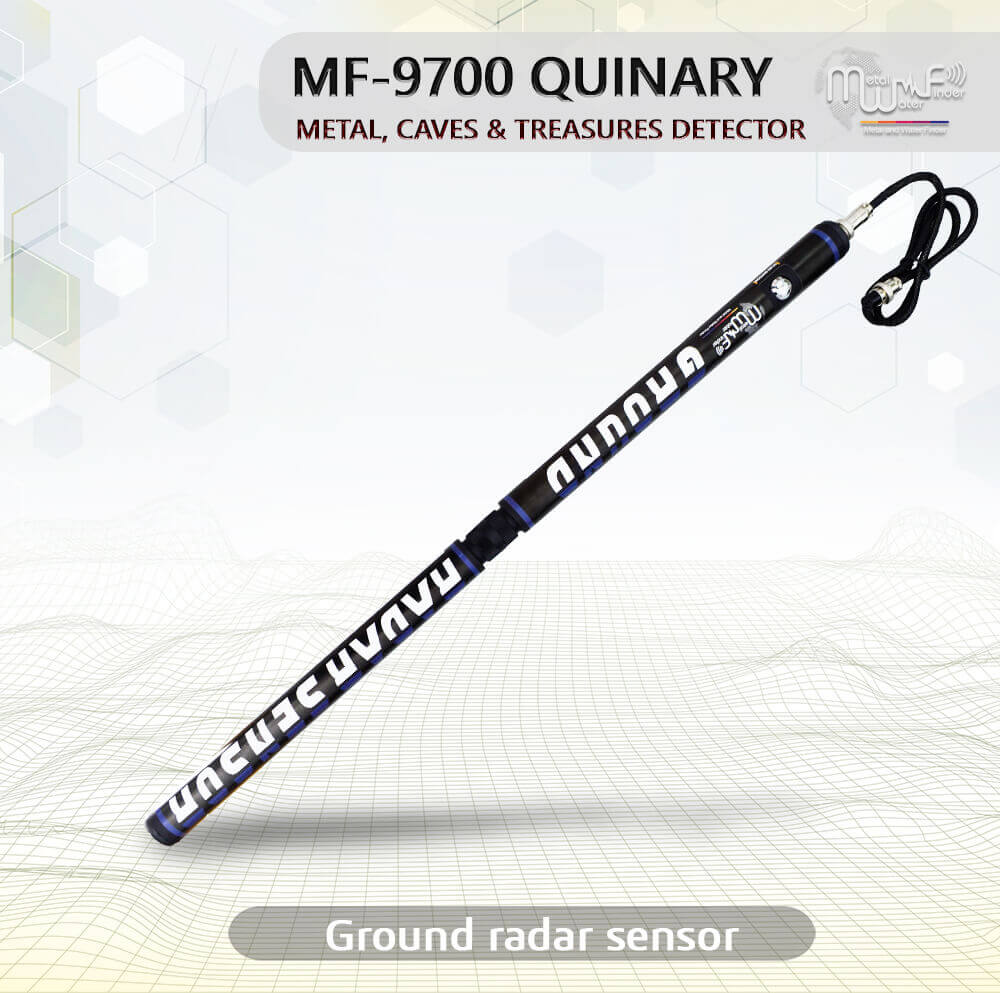

Ground radar sensor

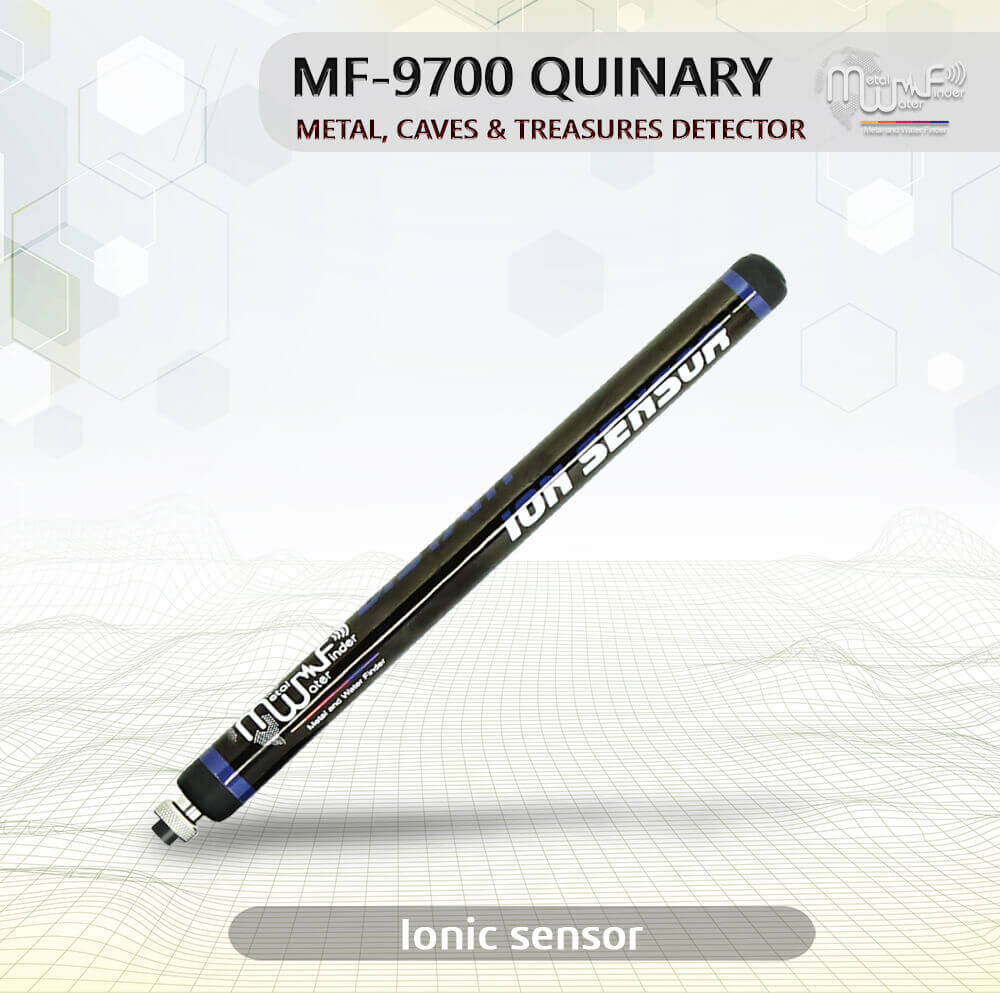

Ionic Sensor

Line Tracker Antenna

connection wires

Wireless Transmission Antenna

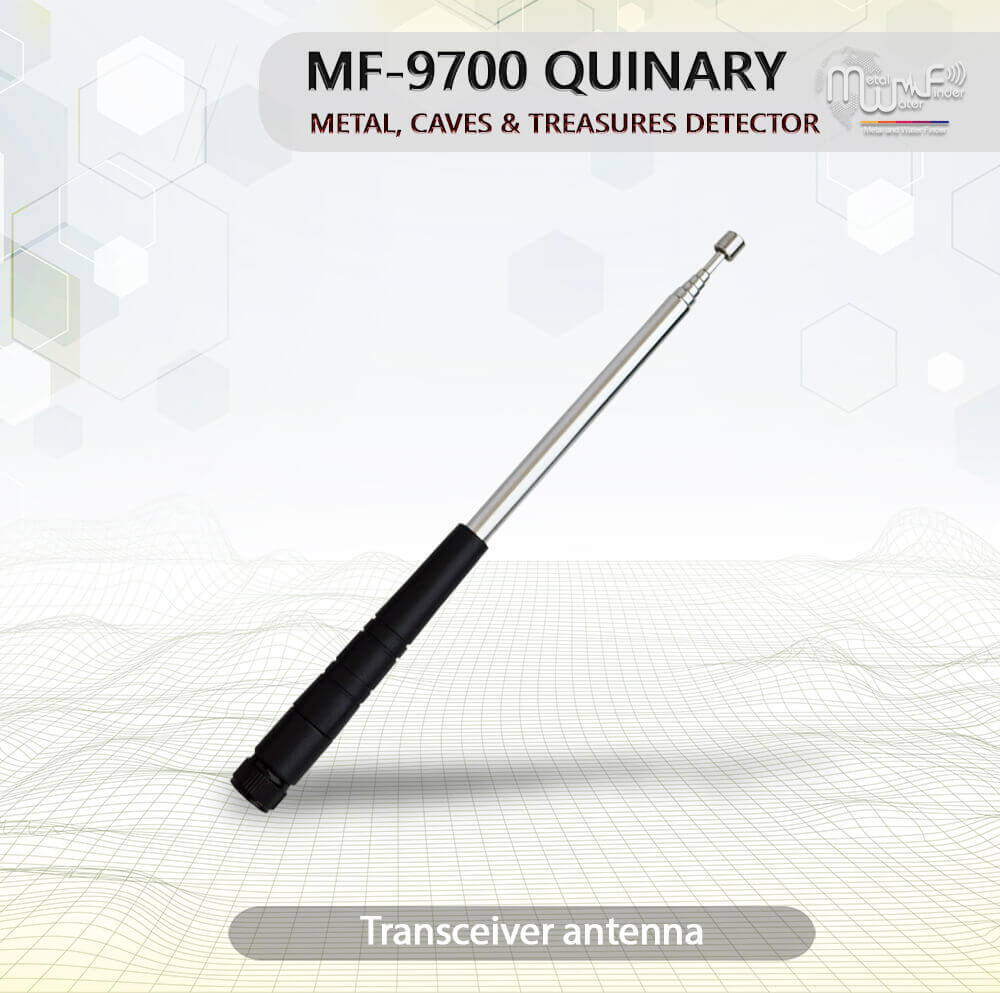

Transceiver antennas

Headphones

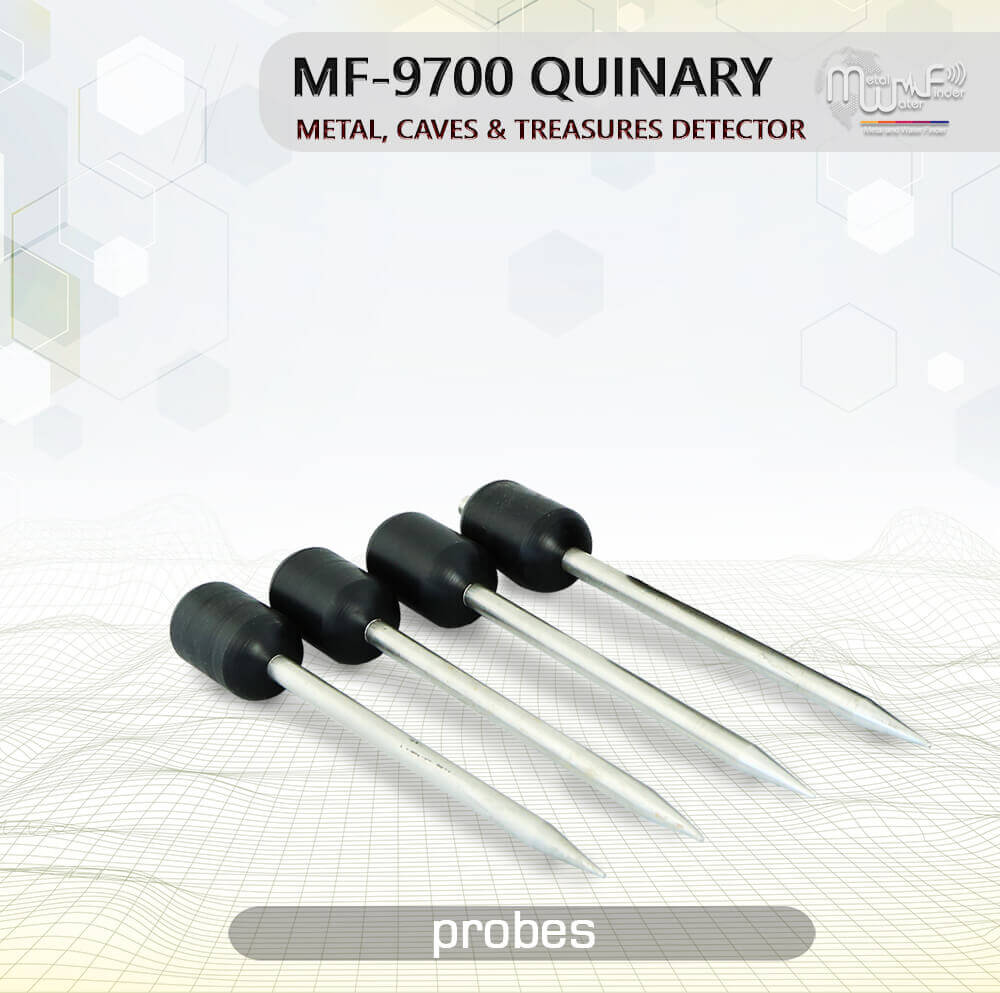

Probes

Line Tracker Wires

Charger

Ionic unit charger

User Manual

To read or download the book, click here
